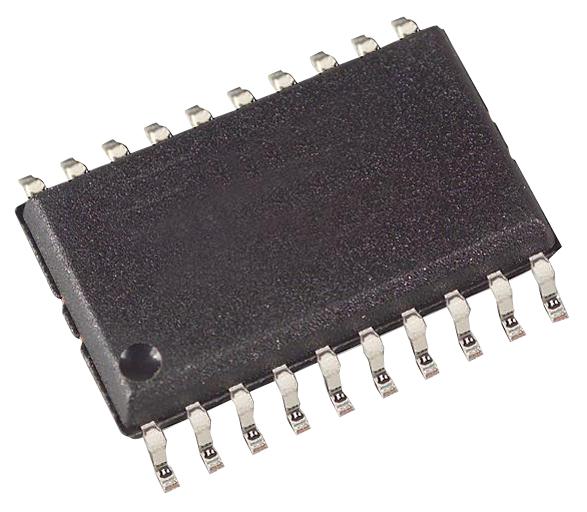

TEXAS INSTRUMENTS - TPS54312PWP - Synchronous Buck Step Down,Switching Regulator, Fixed, 3V-6V In, 1.2V And 3A Out, 550 kHz, HTSSOP-20
- Topology: Synchronous Buck (Step Down)
- Input Voltage Min: 3V
- Input Voltage Max: 6V
- No. of Outputs: 1Outputs
- DC / DC Converter IC Case: HTSSOP
- No. of Pins: 20Pins
- Output Current: 3A
- Switching Frequency: 550kHz
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (15-Jan-2019)
- Accuracy %: 1%
- Base Number: 54312
- Frequency: 700kHz
- Logic Function Number: 54312
- On Resistance Rds(on): 85mohm
- Operating Frequency: 700kHz
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Output Voltage: 1.2V
- Output Voltage Nom.: 1.2V
- Power Supply IC Type: Step-down convertor
- Primary Input Voltage: 6V
- Supply Voltage Min: 3V
- Switch Output Current Isw Max: 4A
- Termination Type: Surface Mount Device
- Voltage Regulator Type: Synchronous Buck
