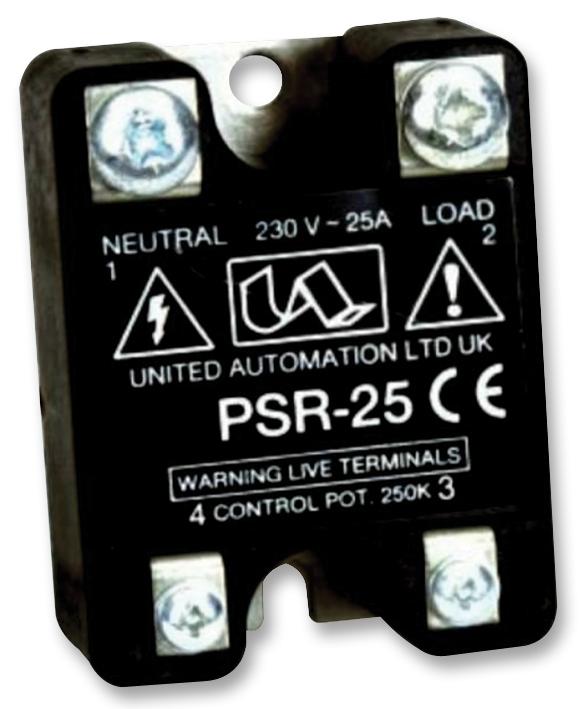

TPSR-25 Power Controller, 25A United Automation

UNITED AUTOMATION - TPSR-25 - Power Controller, CE Approved, 60 Hz, 25 A, 207 V to 253 V

• On State Current Max: 25A
• Supply Voltage Min: 207VAC
• Supply Voltage Max: 253VAC
• Isolation Voltage: 1.5kV
• Supply Frequency: 60Hz
• Operating Temperature Min: 0°C
• Operating Temperature Max: 65°C
• Product Range: -
• SVHC: No SVHC (20-Jun-2016)
• Approval Bodies: CE
• External Depth: 56mm
• External Length / Height: 28mm
• External Width: 43mm
• For Use With: Quartz Lamps, Conventional Resistive Heating Elements, Inductive Loads
• Hysteresis: 15%
• IC Generic Number: *PSR-25
• Leakage Current: 5mA
• Load Power: 6kW
• Off State Voltage: 400V
• Operating Temperature Range: 0°C to +65°C
• RMS Current (Irms): 25A
• Supply Voltage: 240V
• Supply Voltage Range: 207V AC to 253V AC
• Voltage Vf Typ: 1.5V
