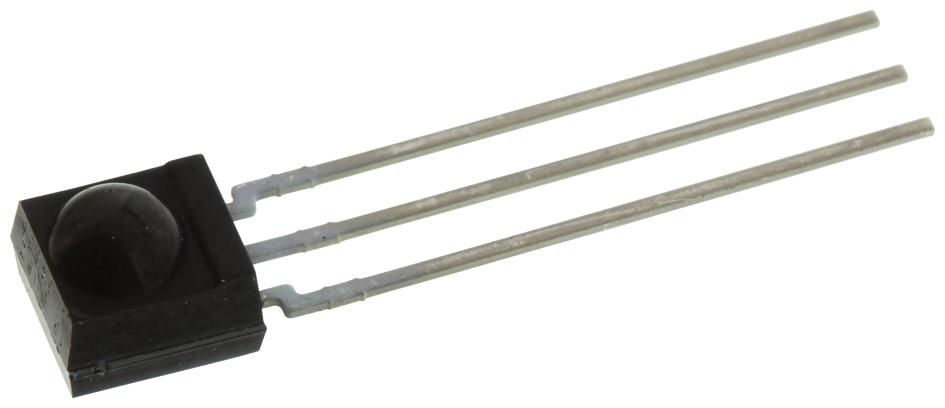

TSOP34836 IR RECEIVER, 45M, 0.08MW/M2, SIDE TH VISHAY

VISHAYUGS :TSOP34836 Code de commande:4913127

Prix:
Prix ​​promotionnel€2,15

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2213 unité)

Documents et téléchargements

description

VISHAY - TSOP34836 - Infrared Receiver, Remote Control, 36 kHz, Side View Through Hole

  • Carrier Frequency: 36kHz
  • IR Receiver Mounting Style: Side View Through Hole
  • Remote Control Code: RC-5, RC-6, Panasonic, NEC, Sharp, r-step, Thomson RCA
  • Transmission Range: 45m
  • Automatic Gain Control (AGC) Type: AGC2
  • Detection Threshold / Sensitivity: 0.08mW/m²
  • Directivity: 45°
  • Supply Voltage Max: 5.5V
  • Supply Voltage Min: 2.7V
  • Operating Temperature Min: -25°C
  • Operating Temperature Max: 85°C
  • Supply Current: 450µA
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 5.6mm
  • External Length / Height: 6.95mm
  • External Width: 6mm
  • Lead Length: 23.55mm
  • Operating Frequency: 36kHz
  • Operating Temperature Range: -25°C to +85°C
  • Supply Voltage Range: 2.7V to 5.5V
