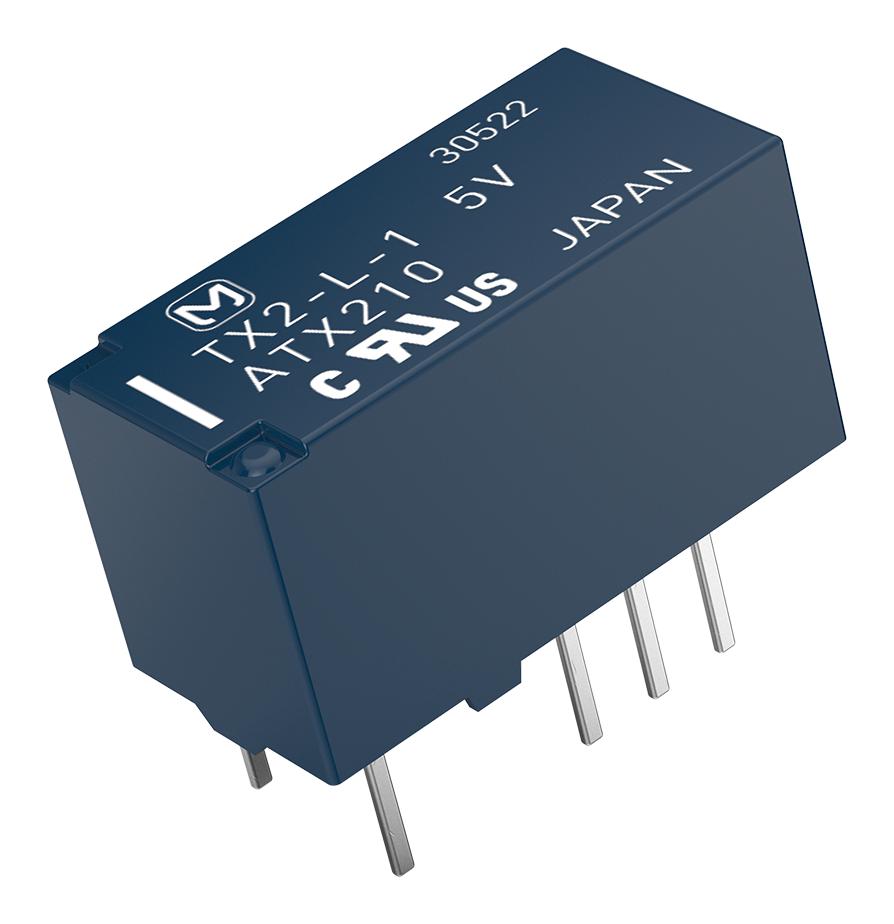

PANASONIC - TX2-L2-5V - Signal Relay, 5 VDC, DPDT, 2 A, TX, Through Hole, Latching Dual Coil
- Coil Voltage: 5VDC
- Contact Configuration: DPDT
- Contact Current: 2A
- Product Range: TX Series
- Relay Mounting: Through Hole
- Coil Type: Latching Dual Coil
- Relay Terminals: Solder
- Contact Voltage VAC: -
- Contact Voltage VDC: 30V
- Contact Material: Silver
- Coil Resistance: 125ohm
- SVHC: No SVHC (07-Jul-2017)
- Approval Bodies: CSA, UL
- Approval Category: EN 41003
- Approvals & Standards: CSA, UL
- Coil Current: 40mA
- Coil Operating Lower Percent Limit: 75%
- Coil Operating Upper Percent Limit: 150%
- Coil Power Continuous: 200mW
- Coil Voltage VDC Nom: 5V
- Contact Current AC Max: 500mA
- Contact Current DC Max: 2A
- Contact Current Max: 2A
- Contact Current Min: 10µA
- Contact Voltage AC Max: 125V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 200mW
- External Depth: 15mm
- External Height: 8.2mm
- External Length / Height: 15mm
- External Width: 7.4mm
- Lead Spacing: 2.54mm
- Nom Operating Power: 200mW
- Operating Temperature Max: 85°C
- Operating Time: 4ms
