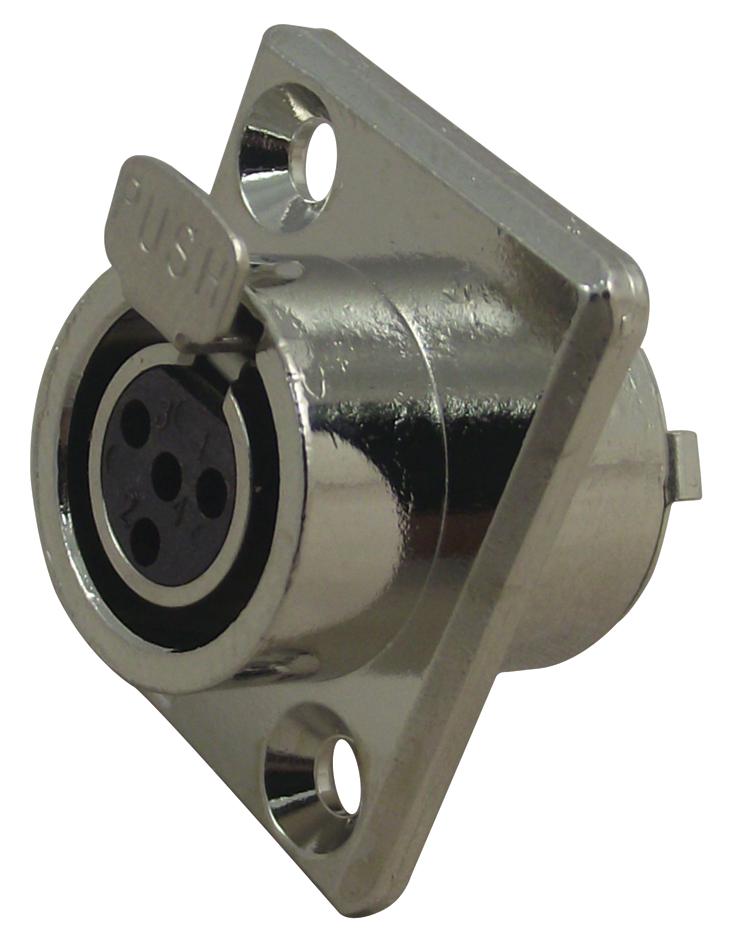

SWITCHCRAFT/CONXALL - TY4F - XLR Connector, 4 Contacts, Jack, Panel Mount, Silver Plated Contacts, Metal Body, TY Tini Q-G
- No. of Contacts: 4Contacts
- Gender: Jack
- Connector Mounting: Panel Mount
- Contact Plating: Silver Plated Contacts
- Connector Body Material: Metal Body
- Product Range: TY Series Tini Q-G
- SVHC: No SVHC (15-Jan-2018)
- Body Plating: Silver
- Connector Colour: Black
- Contact Resistance: 10mohm
- Contact Termination: Solder
- Current Rating: 5A
- External Length / Height: 24.4mm
- External Width: 18.8mm
- Material: Brass, Nickel Plated
- Operating Temperature Max: 85°C
- Operating Temperature Min: -55°C
- Termination Method: Solder
- Voltage Rating VAC: 125V
- Working Voltage: 125V
