UDT Timer, Multifunction TEMPATRON

TEMPATRONUGS :UDT Code de commande:177473

Prix:
Prix ​​promotionnel€228,45

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9 unité)

Documents et téléchargements

description

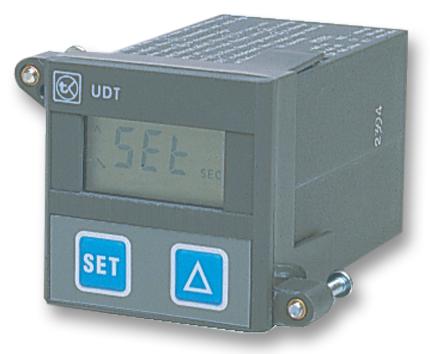

TEMPATRON - UDT - Timer, UDT Series, 6 Ranges, 0.1 s to 99.9 h, 1 Changeover Relay Output, 300 VDC, Plug-In

  • Product Range: UDT Series
  • Timer Functions: Multifunction
  • Time Min: 0.1s
  • Time Max: 99.9h
  • No. of Timing Ranges: 6Ranges
  • No. of Digits: 3
  • Timer Output: 1 Changeover Relay
  • Supply Voltage Max: 300VDC
  • Current Rating Nom: 7A
  • Connection / Termination: Plug-In
  • Panel Cutout Height: 45mm
  • Panel Cutout Width: 45mm
  • SVHC: No SVHC (15-Jan-2019)
  • Adjustment Type: Pushbutton
  • Coil Voltage VAC Nom: 264V
  • Coil Voltage VDC Nom: 300V
  • Contact Configuration: SPCO
  • Contact Current AC Max: 7A
  • Contact Current DC Max: 7A
  • Contact Rating: 7A
  • Contact Voltage AC Max: 240V
  • Contact Voltage DC Max: 30V
  • Delay Time Range: 0.1s to 99.9h
  • External Depth: 75mm
  • External Length / Height: 48mm
  • External Width: 48mm
  • Height: 48mm
  • No. of Pins: 11Pins
  • Nom Input Voltage: 264V
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -10°C
  • Operating Time Range: 9.99s, 99.9s, 9.99m, 99.9m, 9.99hr, 99.9hr.
  • Panel Cutout Size: 45sq mm
  • Relay Mounting: Panel, Quick Connect
  • Repeat Accuracy +: 0.3%
  • Repeat Accuracy -: 0.3%

Frais de port prévus

Tu pourrais aussi aimer

H3CR-A8E 24-48VAC/VDC TIMER, ON-DELAY OMRON
OMRON H3CR-A8E 24-48VAC/Vdc Timer, On-Delay Omron
Prix ​​promotionnel€124,99
Il ne reste que 1 produit

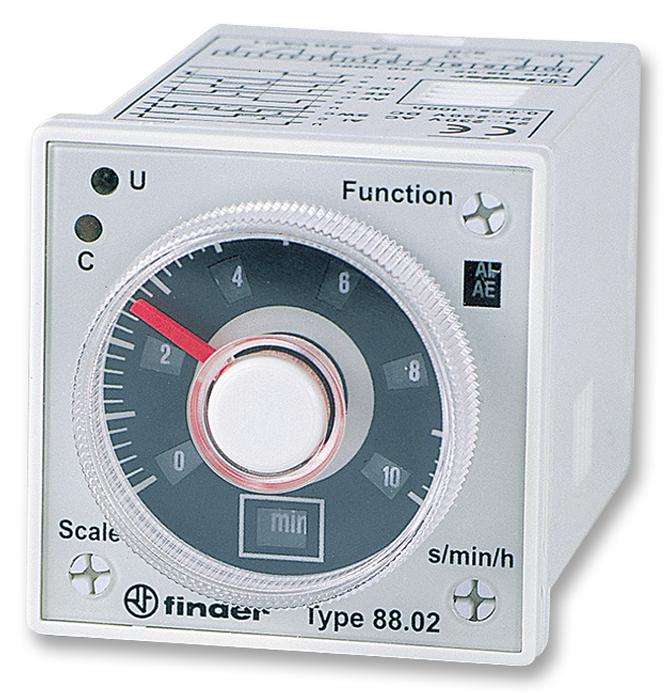

88.02.0.230.0002 MULTIFUNCTION TIMER FINDER
FINDER 88.02.0.230.0002 Multifunction Timer Finder
Prix ​​promotionnel€142,17
Il ne reste que 6 produits
V0DDTD1 TIMER, DIGITAL, ELIRO, DPNO, 17 FUNCTION GIC
GIC V0DDTD1 Timer, Digital, Eliro, DPNO, 17 Function GIC
Prix ​​promotionnel€83,71
En stock, 28 produits
H3YN-2-200/230AC TIMER, MULTIFUNCTION, DPDT OMRON
OMRON H3YN-2-200/230AC TIMER, MULTIFUNCTION, DPDT OMRON
Prix ​​promotionnel€74,21
En stock, 22 produits
H3YN-2- DC24 TIMER, MULTIFUNCTION, DPDT OMRON
OMRON H3YN-2- DC24 Timer, Multifunction, DPDT Omron
Prix ​​promotionnel€72,41
En stock, 33 produits
H3CR-F8 24AC/DC TIMER, RECYCLING OMRON
OMRON H3CR-F8 24AC/DC Timer, Recycling Omron
Prix ​​promotionnel€141,41
Il ne reste que 3 produits

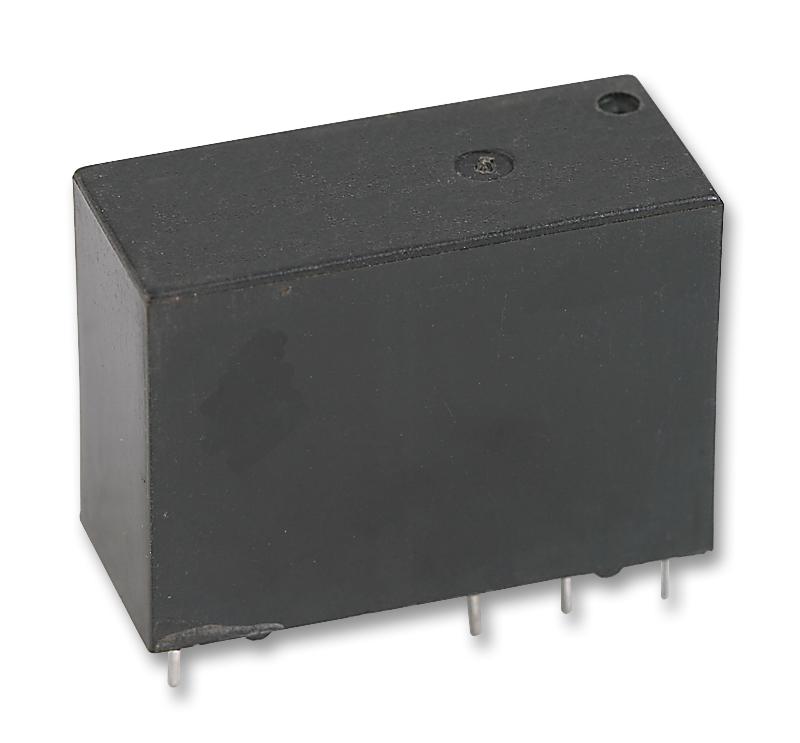

G6RN-1A  DC12 RELAY, SPST, 250VAC, 8A OMRON
