UPW50B500RV Res, 500R, 0.10%, 500mW, Axial NEOHM - Te Connectivity

NEOHM - TE CONNECTIVITYUGS :UPW50B500RV Code de commande:1754862

Prix:
Prix ​​promotionnel€18,64

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (161 unité)

Documenten en downloads

description

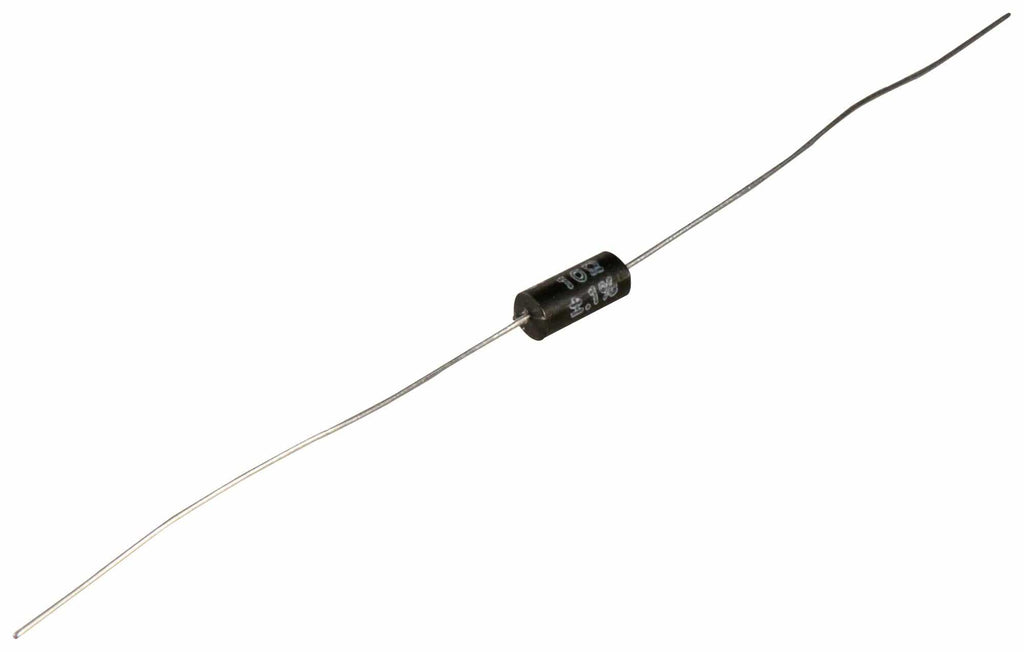

NEOHM - TE CONNECTIVITY - UPW50B500RV - Through Hole Resistor, 500 ohm, UPW, 500 mW, ± 0.1%, Axial Leaded, 400 V

  • Resistance: 500ohm
  • Product Range: UPW Series
  • Power Rating: 500mW
  • Resistance Tolerance: ± 0.1%
  • Resistor Case Style: Axial Leaded
  • Voltage Rating: 400V
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 5ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2018)
  • Body Diameter: 6.35mm
  • Body Length: 12.7mm
  • Lead Diameter: 0.64mm
  • Lead Length: 25mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 145°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +145°C
  • Resistor Mounting: Through Hole
