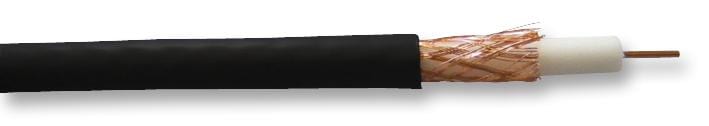

BELDEN - URM202.10200 - Coaxial Cable, 0.442 mm², 75 ohm, 656 ft, 200 m
- Coaxial Cable Type: -
- Wire Gauge: -
- Conductor Area CSA: 0.442mm²
- Impedance: 75ohm
- Reel Length (Imperial): 656ft
- Reel Length (Metric): 200m
- Jacket Colour: Black
- Jacket Material: PVC
- Conductor Material: Copper
- No. of Max Strands x Strand Size: 7 x 0.25mm
- External Diameter: 5.1mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Attenuation @ 100MHz: 11dB
- Attenuation @ 200MHz: 16dB
- Attenuation @ 900MHz: 40dB
- Capacitance: 55pF/m
- Conductor Make-up: 7 / 0.25 mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Outer Diameter: 5.1mm
- Velocity of Propagation (%): 81%
- Voltage Rating VAC: 1200V
