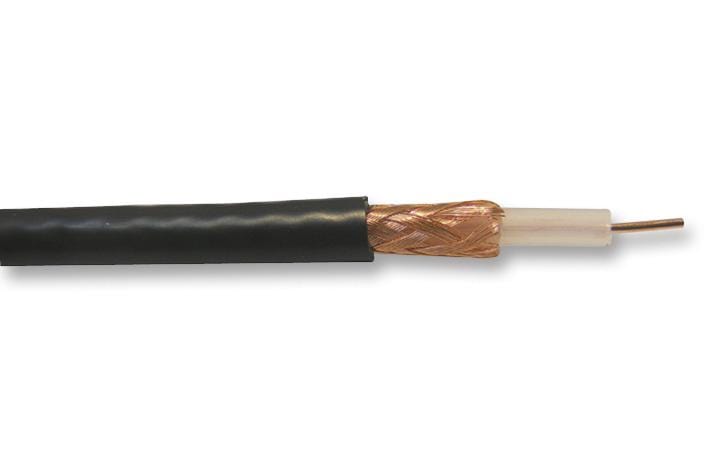

BELDEN - URM43.00100 - Coaxial Cable, URM43, 0.636 mm², 50 ohm, 328 ft, 100 m
- Coaxial Cable Type: URM43
- Wire Gauge: -
- Conductor Area CSA: 0.636mm²
- Impedance: 50ohm
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- Jacket Colour: Black
- Jacket Material: PVC
- Conductor Material: Copper
- No. of Max Strands x Strand Size: Solid
- External Diameter: 5mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Attenuation @ 100MHz: 13dB
- Attenuation @ 1GHz: 44.6dB
- Attenuation @ 200MHz: 18.7dB
- Attenuation @ 300MHz: 23.2dB
- Capacitance: 98pF/m
- Conductor Make-up: 1 / 0.9 mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Outer Diameter: 5mm
- Velocity of Propagation (%): 66%
- Voltage Rating VAC: 2000V
