URM76.00100 Cable, Coax, URM76, Black 100m Belden

BELDENUGS :URM76.00100 Code de commande:1769511

Prix:
Prix ​​promotionnel€228,34

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (64 unité)

Documents et téléchargements

description

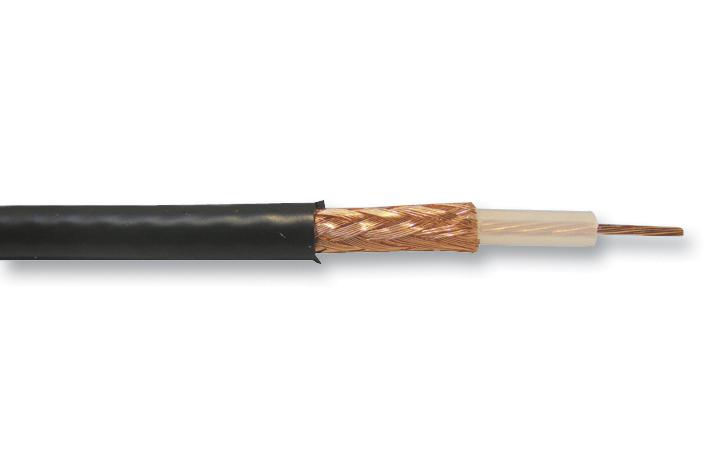

BELDEN - URM76.00100 - Coaxial Cable, URM76, URM76, 50 ohm, 328 ft, 100 m

  • Coaxial Cable Type: URM76
  • Wire Gauge: -
  • Conductor Area CSA: -
  • Impedance: 50ohm
  • Reel Length (Imperial): 328ft
  • Reel Length (Metric): 100m
  • Jacket Colour: Black
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • No. of Max Strands x Strand Size: 7 x 0.32mm
  • External Diameter: 5mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Attenuation @ 100MHz: 15.5dB
  • Attenuation @ 1GHz: 52.7dB
  • Attenuation @ 200MHz: 22.2dB
  • Capacitance: 98pF/m
  • Conductor Make-up: 7 / 0.32 mm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Outer Diameter: 5mm
  • Velocity of Propagation (%): 66%
  • Voltage Rating VAC: 2000V
