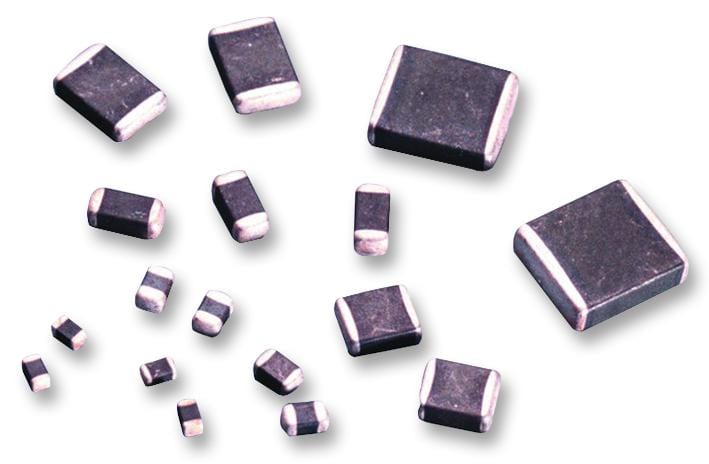

LITTELFUSE - V14MLA0603NHAUTO - TVS Varistor, 10 V, 14 V, MLA, 34.5 V, 0603 [1608 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: 10V
- Voltage Rating V DC: 14V
- Product Range: MLA Series
- Clamping Voltage Vc Max: 34.5V
- Varistor Case Style: 0603 [1608 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 30A
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 100mJ
- Automotive Qualification Standard: AEC-Q200
- Capacitance: 180pF
- Clamping Voltage: 34.5V
- Operating Temperature Range: -55°C to +125°C
- Suppressor Type: Varistor
- Surge Current: 30A
