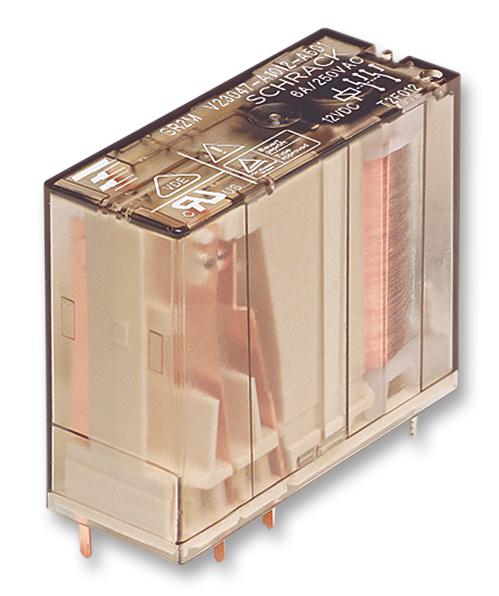

SCHRACK - TE CONNECTIVITY - V23047-A1012-A501 - Safety Relay, 12 VDC, DPDT, V23047, Through Hole, 6 A, Solder
- Coil Voltage: 12VDC
- Contact Configuration: DPDT
- Product Range: V23047 Series
- Relay Mounting: Through Hole
- Contact Current: 6A
- Relay Terminals: Solder
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 24V
- Contact Material: Silver Nickel
- IP Rating: -
- SVHC: No SVHC (12-Jan-2017)
- Approval Bodies: TUV, VDE
- Approval Category: UL Recognised
- Coil Resistance: 206ohm
- Coil Voltage VDC Nom: 12V
- Contact Current Max: 6A
- Contact Current Min: 10mA
- Contact Voltage AC Max: 240V
- Current Rating: 6A
- DC Coil Power: 699mW
- Dielectric Voltage Coil to Contact: 4000VAC
- Dielectric Voltage Contact to Contact: 1500VAC
- External Depth: 29mm
- External Height: 25.5mm
- External Length / Height: 25.5mm
- External Width: 12.6mm
- Must Actuate Voltage: 9V
- Must Release Voltage: 1.2V
- Switch Current Max: 6A
- Switching Capacity: 1500 VA
- Switching Current Max: 6A
- Switching Voltage AC / DC Max: 400VAC
- Weight: 20g
