V23079B1203B301 Relay, Signal, DPDT, 250VAC, 220VDC, 2A AXICOM - Te Connectivity

AXICOM - TE CONNECTIVITYUGS :3-1393788-6 Code de commande:4220006

Prix:
Prix ​​promotionnel€7,22

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (559 unité)

Documents et téléchargements

description

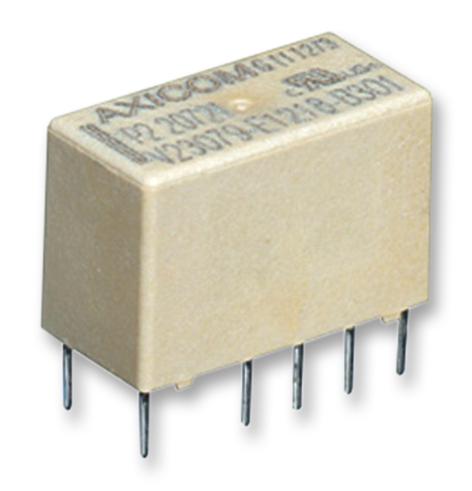

AXICOM - TE CONNECTIVITY - 3-1393788-6 - Signal Relay, 12 VDC, DPDT, 2 A, P2/V23079, Through Hole, Latching Dual Coil

  • Coil Voltage: 12VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: P2/V23079 Series
  • Relay Mounting: Through Hole
  • Coil Type: Latching Dual Coil
  • Relay Terminals: Solder
  • Contact Voltage VAC: 250V
  • Contact Voltage VDC: 220V
  • Contact Material: Silver Nickel
  • Coil Resistance: 1.029kohm
  • SVHC: No SVHC (15-Jan-2018)
  • Approvals & Standards: IEC, UL
  • Coil Power Continuous: 140mW
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 2A
  • Contact Current DC Max: 2A
  • Contact Current Max: 2A
  • Contact Current Rating: 5A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 220V
  • Contact Voltage DC Nom: 220V
  • DC Coil Power: 400mW
  • External Depth: 14.5mm
  • External Height: 9.8mm
  • External Length / Height: 14.5mm
  • External Width: 7.2mm
  • IP / NEMA Rating: IP67
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 3ms
  • Operating Voltage Range: 9V to 26.15V
  • Relay Type: General Purpose
  • Release Time: 2ms
  • Switch Current Max: 5A
