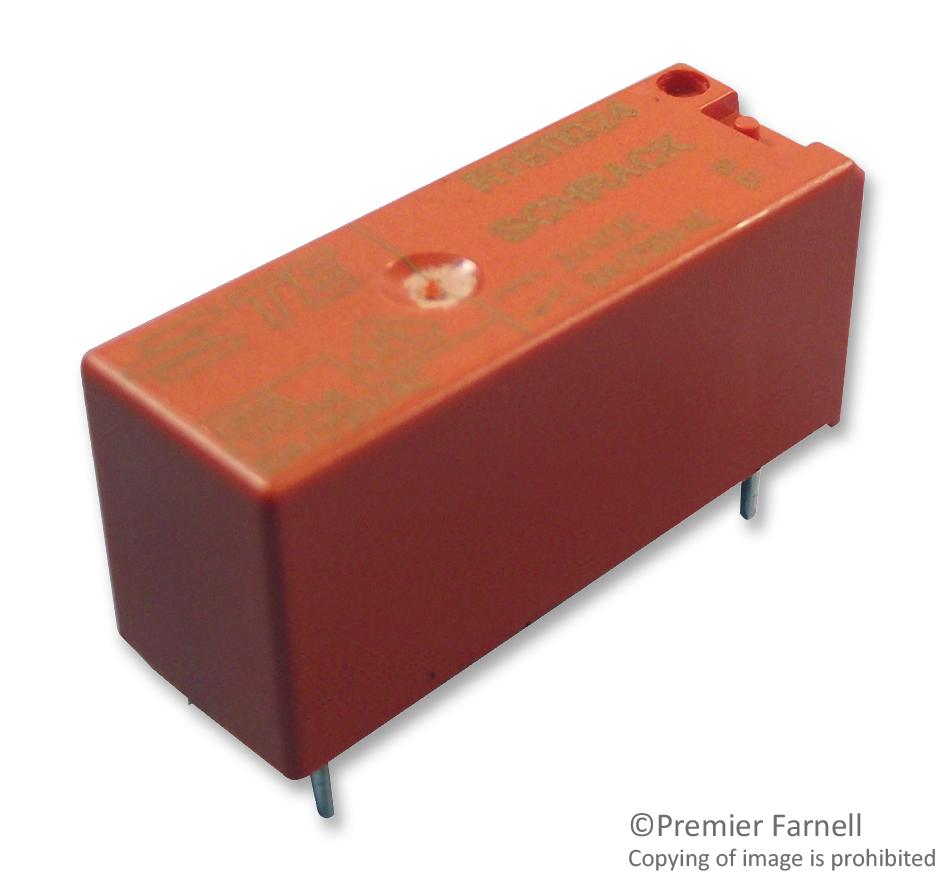

SCHRACK - TE CONNECTIVITY - 2-1393203-9 - General Purpose Relay, U/UB Series, Power, Non Latching, SPDT, 12 VDC, 5 A
- Contact Configuration: SPDT
- Coil Voltage: 12VDC
- Contact Current: 5A
- Product Range: U/UB Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 440ohm
- SVHC: No SVHC (15-Jan-2019)
- Approval Category: UL Recognised
- Coil Operating Lower Percent Limit: 70%
- Coil Operating Upper Percent Limit: 120%
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 5A
- Contact Current DC Max: 5A
- Contact Current Max: 5A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 24V
- Contact Voltage DC Nom: 24V
- DC Coil Power: 330mW
- Dielectric Strength VDC: 4kV
- External Depth: 14.9mm
- External Height: 21.2mm
- External Length / Height: 21.2mm
- External Width: 16.5mm
- Nom Operating Power: 327mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Operating Time: 7ms
- PCB Hole Diameter: 1.5mm
- Relay Type: Power
- Release Time: 3ms
- Weight: 9.5g
