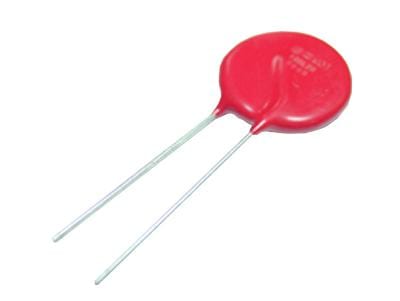

V275LA20CP Metal Oxide Varistor LITTELFUSE

LITTELFUSEUGS :V275LA20CP Code de commande:1703839

Prix:
Prix ​​promotionnel€1,54

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1445 unité)

Documents et téléchargements

description

LITTELFUSE - V275LA20CP - TVS Varistor, MOV, 275 V, LA, 710 V, Disc 14mm, Metal Oxide Varistor (MOV)

  • Voltage Rating VAC: 275V
  • Voltage Rating V DC: -
  • Product Range: LA Series
  • Clamping Voltage Vc Max: 710V
  • Varistor Case Style: Disc 14mm
  • Varistor Type: Metal Oxide Varistor (MOV)
  • Peak Surge Current @ 8/20µs: 6kA
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 85°C
  • Peak Energy (10/1000uS): -
  • Automotive Qualification Standard: -
  • Clamping Voltage: 710V
  • Clamping Voltage @ 8/20µs Max: 710V
  • Operating Temperature Range: -55°C to +85°C
  • Peak Pulse Current IPP @ 8/20µs: 6000A
  • Suppressor Type: Transient Voltage
  • Surge Current: 6kA
  • Varistor Voltage @ 1mA: 430V
  • Varistor Voltage @ 1mA Max: 473V
  • Varistor Voltage Tolerance +: 10%
  • Varistor Voltage Tolerance -: 10%
