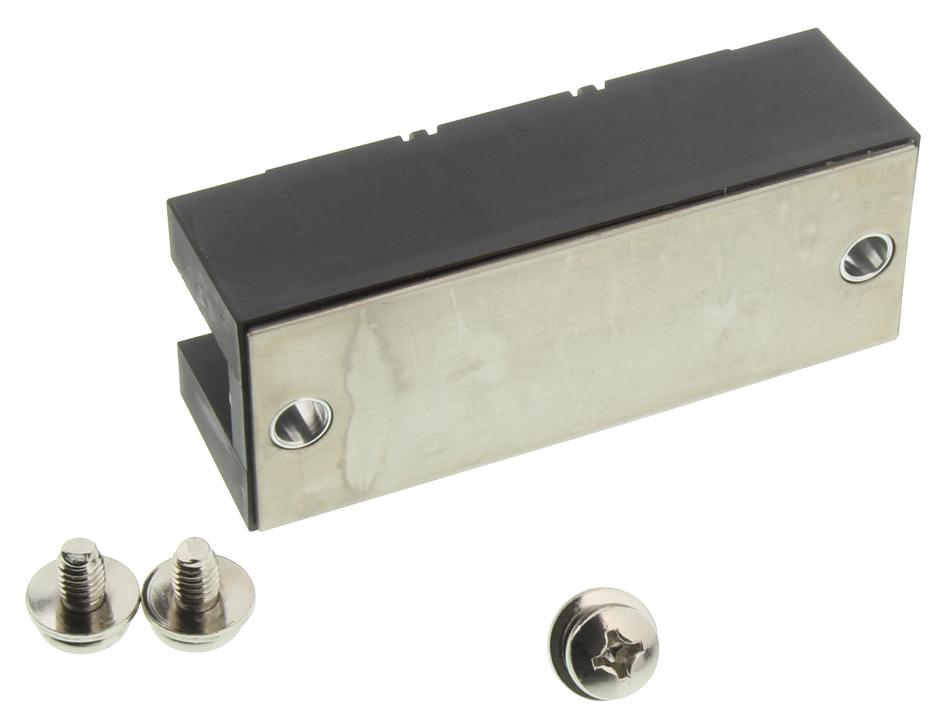

VISHAY - VS-VSKT162/16PBF - Thyristor Module, Series Connected, 160 A, 1600 V
- SCR Module Type: Series Connected - SCRs
- Peak Repetitive Off-State Voltage, Vdrm: 1.6kV
- Gate Trigger Current Max, Igt: 150mA
- Current It av: 160A
- On State RMS Current IT(rms): 355A
- Peak Non Rep Surge Current Itsm 50Hz: 4.87kA
- Holding Current Max Ih: 200mA
- Gate Trigger Voltage Max Vgt: 2.5V
- Operating Temperature Max: 125°C
- Product Range: -
- Approval Bodies: UL
- Case Temperature Tc: 85°C
- Current Itsm: 4870A
- External Depth: 35mm
- External Length / Height: 30mm
- External Width: 94mm
- Fixing Centres: 80mm
- Fixing Hole Diameter: 6.5mm
- Igt Temperature: 25°C
- Isolation Voltage: 3500V
- Itsm Frequency: 50Hz
- Junction Temperature Tj Max: 125°C
- Junction Temperature Tj Min: -40°C
- Junction to Case Thermal Resistance A: 0.16°C/W
- No. of Pins: 3Pins
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Output Current: 300A
- Rate of Current Change di / dt: 300A/s
- Rate of Voltage Change dv / dt: 1000V/µs
- Repetitive Reverse Voltage Vrrm Max: 1600V
- Temperature Vgt: 25°C
