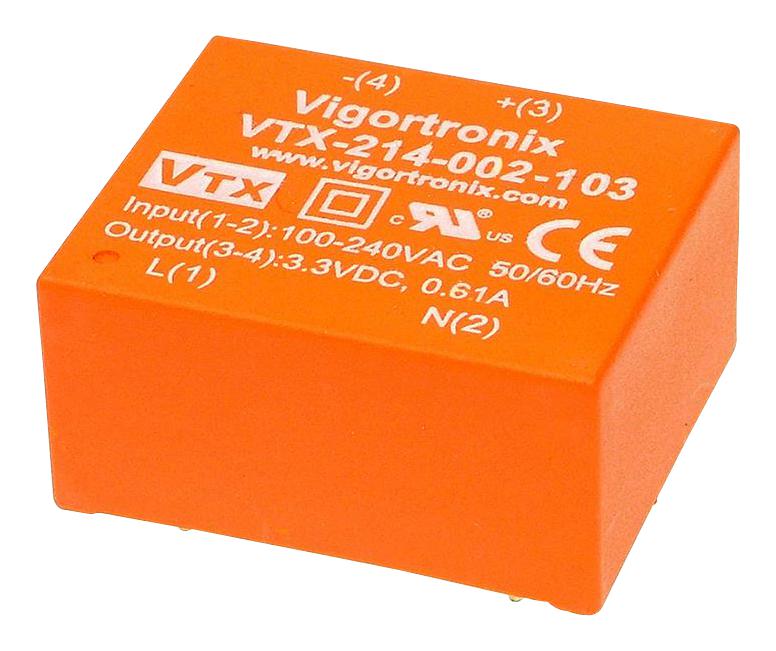

VIGORTRONIX - VTX-214-002-103 - AC/DC PCB Mount Power Supply (PSU), ITE, 1 Output, 2 W, 3.3 V, 600 mA
- No. of Outputs: 1 Output
- Output Power Max: 2W
- Output Voltage - Output 1: 3.3V
- Output Current - Output 1: 600mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Power Supply Output Type: Fixed
- Input Voltage VAC: 90V AC to 277V AC
- Width: 24.2mm
- Height: 14.5mm
- Depth: 29mm
- Product Range: VTX-214-002 Series
- SVHC: No SVHC (12-Jan-2017)
- Input Voltage AC Max: 277V
- Input Voltage AC Min: 90V
- Output Current Max: 600mA
