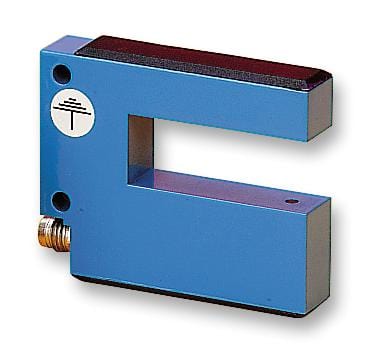

SICK - WF15-40B410 - Photoelectric Sensor, Fork, WF Series, 15 mm, NPN / PNP, 10 V to 30 V
- Sensor Output: NPN / PNP
- Sensing Range Max: 15mm
- Supply Voltage DC Min: 10V
- Supply Voltage DC Max: 30V
- Output Current: 100mA
- Product Range: WF Series
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 60mm
- External Length / Height: 50mm
- External Width: 12mm
- Frequency Response Max: 10kHz
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Output Current Max: 0.1A
- Response Time: 1ms
- Sensing Distance Max: 15mm
- Sensing Distance Min: 2mm
- Sensor Input: Optical
- Slot Width: 15mm
- Supply Voltage Range DC: 10V to 30V
- Thread Size: M8
