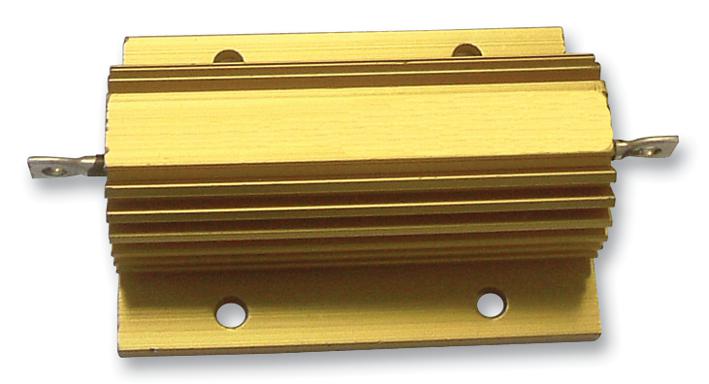

WH100-1K5JI Resistor, 100W, 5%, 1K5 TT Electronics / WELWYN

TT ELECTRONICS / WELWYNUGS :WH100-1K5JI Code de commande:1768226

Prix:
Prix ​​promotionnel€53,54

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (66 unité)

Documents et téléchargements

description

TT ELECTRONICS / WELWYN - WH100-1K5JI - Resistor, Solder Lug, 1.5 kohm, WH, 100 W, ± 5%, Solder Lug, 1.9 kV

  • Resistance: 1.5kohm
  • Product Range: WH Series
  • Power Rating: 100W
  • Resistance Tolerance: ± 5%
  • Resistor Terminals: Solder Lug
  • Voltage Rating: 1.9kV
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 25ppm/°C
  • SVHC: No SVHC (15-Jan-2019)
  • Body Length: 65.2mm
  • External Depth: 47.5mm
  • External Length / Height: 24.1mm
  • External Width: 88mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 200°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +200°C
  • Resistor Mounting: Panel
  • Withstand Voltage: 6360V
