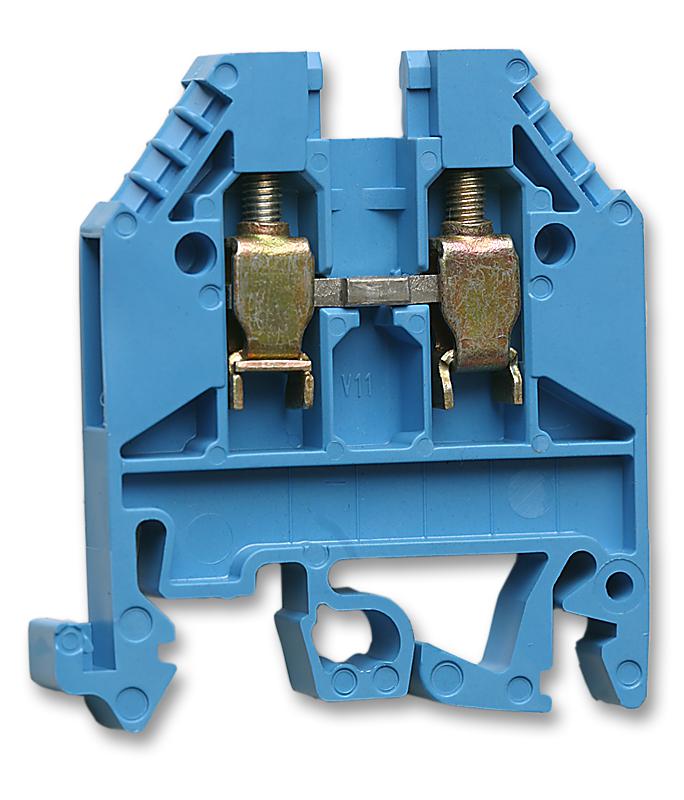

WK4/U Bl Terminal Block, DIN Rail, 2Pos, 0AWG Wieland Electric

WIELAND ELECTRICUGS :WK4/U BL Code de commande:3791749

Prix:
Prix ​​promotionnel€3,88

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (47 unité)

Documents et téléchargements

description

WIELAND ELECTRIC - WK4/U BL - DIN Rail Mount Terminal Block, 2 Ways, 22 AWG, 10 AWG, 6 mm², Screw, 32 A

  • No. of Positions: 2Ways
  • Wire Size AWG Min: 22AWG
  • Wire Size AWG Max: 10AWG
  • Conductor Area CSA: 6mm²
  • Wire Connection Method: Screw
  • Rated Current: 32A
  • Rated Voltage: 800V
  • No. of Levels: 1
  • Product Range: -
  • SVHC: No SVHC (12-Jan-2017)
  • Approvals / Standards: EN 60947
  • Connector Mounting: DIN Rail Mount
  • Connector Type: Terminal Block, DIN Rail
  • Contact Material: Copper
  • Contact Plating: Tin Plated Contacts
  • External Width: 6mm
  • Pitch Spacing: 6mm
  • Voltage Rating VAC: 800V
  • Wire Area Size Max: 4mm²
  • Wire Area Size Min: 0.5mm²
