WLFT 404 37 X 38 Thermally Conductive Foil, Adhesive Fischer Elektronik

FISCHER ELEKTRONIKUGS :WLFT 404 37 X 38 Code de commande:4695537

Prix:
Prix ​​promotionnel€11,44

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1243 unité)

Documents et téléchargements

description

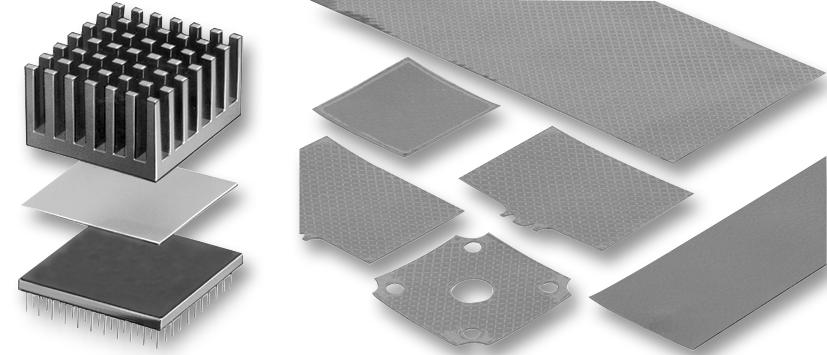

FISCHER ELEKTRONIK - WLFT 404 37 X 38 - THERMALLY CONDUCTIVE FOIL, ADHESIVE

  • Insulator Body Material: Nylon (Polyamide), (PI Polyimide Film)
  • Thermal Conductivity: 0.37W/m.K
  • Breakdown Voltage Vbr: -
  • Thickness: 0.127mm
  • Volume Resistivity: -
  • Thermal Impedance: -
  • Dielectric Strength: -
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 38mm
  • External Width: 37mm
  • Flammability Rating: UL94V-0
  • Isolation Voltage: 5kV
  • Length: 0.025mm
  • Material: Nylon (Polyamide), (PI Polyimide Film)
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +150°C
  • Overall Width: 37mm
  • Type: Adhesive Foil
