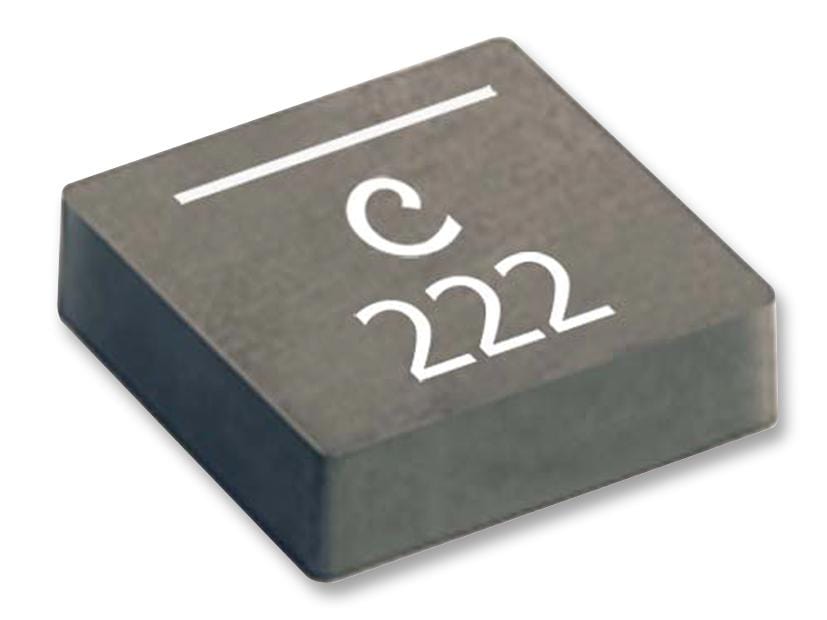

COILCRAFT - XAL7020-331MEC - Power Inductor (SMD), 330 nH, 20 A, Shielded, 28 A, XAL7020, 7.5mm x 7.5mm x 2mm
- Inductance: 330nH
- RMS Current (Irms): 20A
- Inductor Construction: Shielded
- Saturation Current (Isat): 28A
- Product Range: XAL7020 Series
- Power Inductor Case: 7.5mm x 7.5mm x 2mm
- DC Resistance Max: 0.0052ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 88MHz
