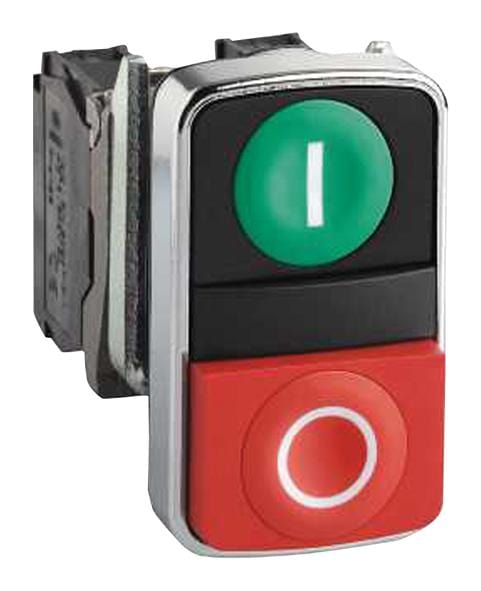

SCHNEIDER ELECTRIC - XB4BL73415 - Industrial Pushbutton Switch, Harmony, 22.5 mm, SPST-NO, SPST-NC, Momentary, Flush, Green, Red
- Switch Operation: Momentary
- Contact Configuration: SPST-NO, SPST-NC
- Contact Voltage AC Nom: 120V
- Contact Voltage DC Nom: -
- Contact Current Max: 6A
- Switch Terminals: Screw Clamp
- Product Range: Harmony XB4 Series
- SVHC: No SVHC (15-Jan-2018)
- Actuator / Cap Colour: Green, Red
- Contact Current AC Max: 6A
- Contact Current DC Max: 550mA
- Contact Voltage VAC: 120V
- Contact Voltage VDC: 125V
- IP Rating: IP67, IP69, IP69K
- Illumination Colour: Non-illuminated
- Panel Cutout Diameter: 22.5mm
- Pushbutton Actuator Style: Flush
- Pushbutton Switch Type: Industrial
- Switch Mounting: Panel
