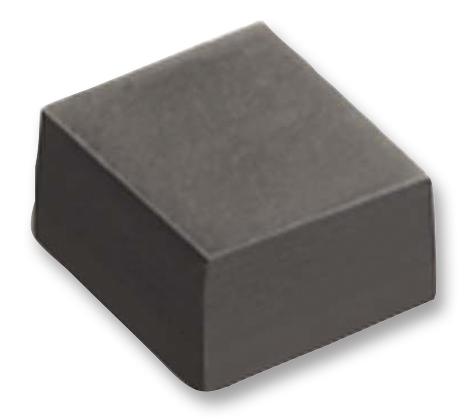

COILCRAFT - XPL2010-682MLC - Power Inductor (SMD), 6.8 µH, 870 mA, Shielded, 450 mA, XPL2010
- Inductance: 6.8µH
- RMS Current (Irms): 870mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 450mA
- Product Range: XPL2010 Series
- Power Inductor Case: 2mm x 1.9mm x 1mm
- DC Resistance Max: 0.463ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 33MHz
