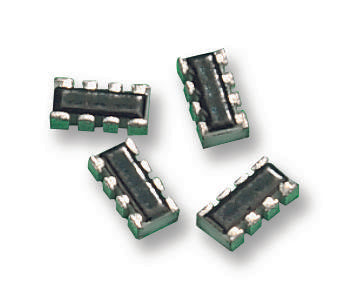

YC124-Jr-0747KL Resistor Array, ARV341, 4 X 0402, 47K YAGEO

YAGEO - YC124-JR-0747KL - Fixed Network Resistor, 47 kohm, Isolated, 4 Resistors, 0804 [2010 Metric], Convex, ± 5%

• Resistance: 47kohm
• Product Range: YC124 Series
• No. of Elements: 4Elements
• Network Circuit Type: Isolated
• Resistor Case Style: 0804 [2010 Metric]
• No. of Pins: 8Pins
• Voltage Rating: 50V
• Power Rating per Element: 62.5mW
• Resistance Tolerance: ± 5%
• Temperature Coefficient: ± 300ppm/°C
• Automotive Qualification Standard: -
• SVHC: No SVHC (15-Jan-2019)
• Climatic Category: 55/125/56
• External Depth: 0.5mm
• External Length / Height: 2mm
• External Width: 1mm
• Full Power Rating Temperature: 70°C
• Operating Temperature Max: 125°C
• Operating Temperature Min: -55°C
• Operating Temperature Range: -55°C to +125°C
• Power Rating: 62.5mW
• Reel Quantity: 10000
• Resistance R1: 47kohm
• Resistor Element Material: Thick Film
• Resistor Mounting: Surface Mount Device
• Temperature Coeff. +: 300ppm/°C
• Temperature Coeff. -: 300ppm/°C
• Tolerance +: 5%
• Tolerance -: 5%
• Voltage Rating V DC: 50V
• Voltage Rating VAC: 50V
