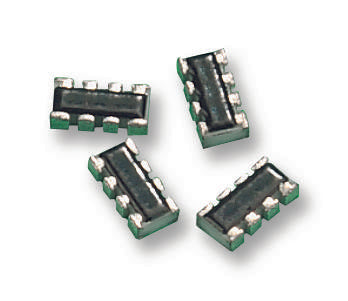

YC124-Jr-0768RL Resistor Array, ARV341, 4 X 0402, 68R YAGEO

YAGEOUGS :YC124-JR-0768RL Code de commande:9235299

Prix:
Prix ​​promotionnel€0,08

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2841 unité)

Documents et téléchargements

description

YAGEO - YC124-JR-0768RL - Fixed Network Resistor, 68 ohm, Isolated, 4 Resistors, 0804 [2010 Metric], Convex, ± 5%

  • Resistance: 68ohm
  • Product Range: YC124 Series
  • No. of Elements: 4Elements
  • Network Circuit Type: Isolated
  • Resistor Case Style: 0402 [1005 Metric]
  • No. of Pins: 8Pins
  • Voltage Rating: 50V
  • Power Rating per Element: 62.5mW
  • Resistance Tolerance: ± 5%
  • Temperature Coefficient: ± 300ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Climatic Category: 55/125/56
  • External Depth: 0.5mm
  • External Length / Height: 2mm
  • External Width: 1mm
  • Full Power Rating Temperature: 70°C
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Power Rating: 62.5mW
  • Reel Quantity: 10000
  • Resistance R1: 68ohm
  • Resistor Element Material: Thick Film
  • Resistor Mounting: Surface Mount Device
  • Temperature Coeff. +: 300ppm/°C
  • Temperature Coeff. -: 300ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating V DC: 50V
  • Voltage Rating VAC: 50V
