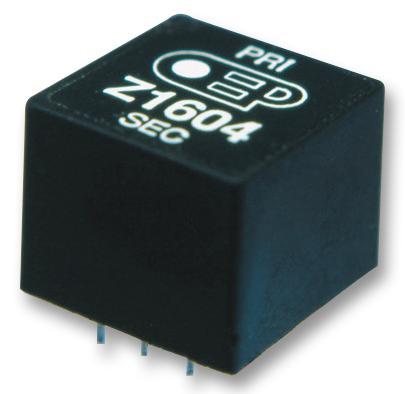

Z1604 Transformer, 1:1, 600/600 OEP (Oxford Electrical Products)

OEP (OXFORD ELECTRICAL PRODUCTS)UGS :Z1604 Code de commande:1172421

Prix:
Prix ​​promotionnel€14,83

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9183 unité)

Documenten en downloads

description

OEP (OXFORD ELECTRICAL PRODUCTS) - Z1604 - Audio Transformer, 1:1, 600 ohm, 600 ohm, 2 mW, 25 kHz, 2 kV

  • TRANSFORMER, 1: 1, 600/600
  • Current Rating: -
  • Primary Impedance: 600ohm
  • Secondary Impedance: 600ohm
  • Transformer Mounting: Through Hole
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 18mm
  • External Length / Height: 15mm
  • External Width: 18mm
  • Frequency Max: 25kHz
  • Frequency Min: 30Hz
  • Power Rating: 2mW
  • Primary Resistance: 109ohm
  • Secondary Resistance: 134ohm
  • Transformer Type: Encapsulated
  • Turns Ratio: 1
