OPTO 22 - Z240D10-17 - Solid State Relay, 10 A, 280 VAC, Panel Mount, Quick Connect, DC Switch
- Contact Configuration: -
- Load Current: 10A
- Operating Voltage Max: 280VAC
- Relay Mounting: Panel
- Relay Terminals: Quick Connect
- Switching Mode: DC Switch
- Operating Voltage Min: 24VAC
- Control Voltage Min: 3VDC
- Control Voltage Max: 32VDC
- Product Range: Z Series
- SVHC: No SVHC (27-Jun-2018)
- Control Current Voltage: 240V
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Pickup: 3V
- Control Voltage Range: 3V DC to 32V DC
- Control Voltage Type: DC
- I2t: 50s
- Isolation Voltage: 4kV
- Leakage Current: 12mA
- Load Current RMS Max: 10A
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Voltage Range: 24V AC to 280V AC
- Output Type: SCR
- RMS Load Voltage Max: 280V
- RMS Load Voltage Min: 24V
- Signal Drop-out Voltage: 1V
- Single Cycle Surge Current: 110A
Frais de port prévus
Tu pourrais aussi aimer

SENSATA/CRYDOM
LS240D12 SSR, Sip, 280VAC/12A, 4-10VDC, ZC SENSATA/Crydom
Prix promotionnel€47,93
En stock, 16 produits
OPTO 22
240D25 Relay,Solid State,DC,25A,280VAC Opto 22
Prix promotionnel€103,91
En stock, 25 produits
SENSATA/CRYDOM
A2440 SSR, 40A, 240Vac SENSATA/Crydom
Prix promotionnel€85,69
En stock, 26 produits
SENSATA/CRYDOM
PF240D25R SSR, 25A, 240Vac SENSATA/Crydom
Prix promotionnel€46,46
En stock, 367 produits
SENSATA/CRYDOM

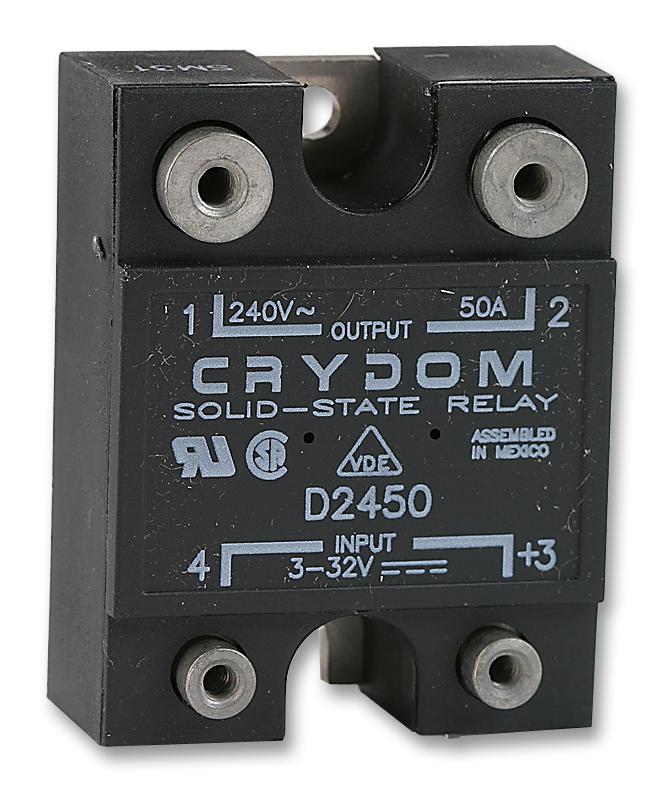

D2450-10 SSR, 50A, 240Vac SENSATA/Crydom
