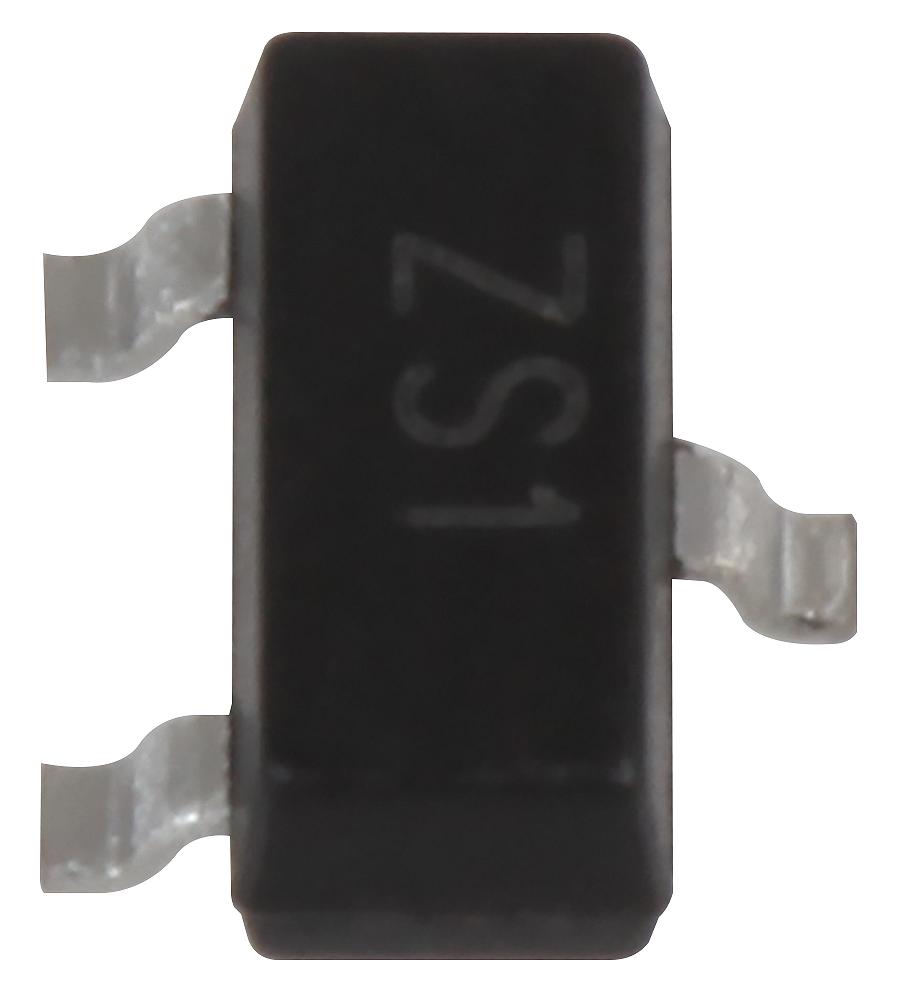

ZHCS1000TA DIODE, SCHOTTKY, 1A, 40V, SOT-23 DIODES INC.

DIODES INC.UGS :ZHCS1000TA Code de commande:9526773

Prix:
Prix ​​promotionnel€1,16

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (119827 unité)

Documents et téléchargements

description

DIODES INC. - ZHCS1000TA - Schottky Rectifier, 40 V, 1 A, Single, SOT-23, 3 Pins, 425 mV

  • Repetitive Reverse Voltage Vrrm Max: 40V
  • Forward Current If(AV): 1A
  • Diode Configuration: Single
  • Diode Case Style: SOT-23
  • No. of Pins: 3Pins
  • Forward Voltage VF Max: 425mV
  • Forward Surge Current Ifsm Max: 12A
  • Operating Temperature Max: 125°C
  • Product Range: ZHCS1 Series
  • Automotive Qualification Standard: AEC-Q101
  • SVHC: No SVHC (15-Jan-2019)
  • Current If @ Vf: 1A
  • Current Ifsm: 12A
  • Diode Type: Schottky
  • External Depth: 2.5mm
  • External Length / Height: 1.12mm
  • External Width: 3.05mm
  • Forward Voltage: 425mV
  • Junction Temperature Tj Max: 125°C
  • Power Dissipation Ptot Max: 500mW
  • Reverse Recovery Time trr Max: 12ns
  • Reverse Recovery Time trr Typ: 12ns
  • Reverse Voltage Vr Max: 40V
  • SMD Marking: ZS1
  • Semiconductor Technology: Si
