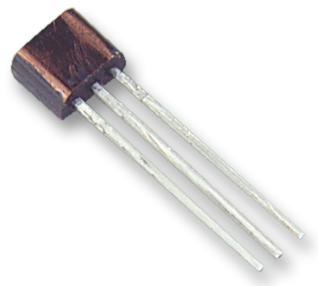

ZTX450 Transistor, NPN, 45V, E-Line Diodes Inc.

DIODES INC.UGS :ZTX450 Code de commande:9525513

Prix:
Prix ​​promotionnel€1,51

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5609 unité)

Documents et téléchargements

description

DIODES INC. - ZTX450 - Bipolar (BJT) Single Transistor, General Purpose, NPN, 45 V, 1 A, 1 W, E-Line, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 45V
  • Transition Frequency ft: 150MHz
  • Power Dissipation Pd: 1W
  • DC Collector Current: 1A
  • DC Current Gain hFE: 100hFE
  • Transistor Case Style: E-Line
  • No. of Pins: 3Pins
  • Operating Temperature Max: 200°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): 250mV
  • Continuous Collector Current Ic Max: 1A
  • Current Ic @ Vce Sat: 150mA
  • Current Ic Continuous a Max: 1A
  • Current Ic hFE: 150mA
  • Gain Bandwidth ft Min: 150MHz
  • Gain Bandwidth ft Typ: 150MHz
  • Hfe Min: 100
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +200°C
  • Pin Configuration: e
  • Power Dissipation Ptot Max: 1W
  • Voltage Vcbo: 60V
