ZTX790A Transistor, PNP, E-Line Diodes Inc.

DIODES INC.UGS :ZTX790A Code de commande:9526188

Prix:
Prix ​​promotionnel€2,09

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4776 unité)

Documents et téléchargements

description

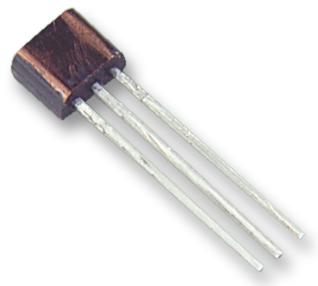

DIODES INC. - ZTX790A - Bipolar (BJT) Single Transistor, PNP, 50 V, 2 A, 1 W, E-Line, Through Hole

  • Transistor Polarity: PNP
  • Collector Emitter Voltage V(br)ceo: 50V
  • Transition Frequency ft: 100MHz
  • Power Dissipation Pd: 1W
  • DC Collector Current: -2A
  • DC Current Gain hFE: 300hFE
  • Transistor Case Style: E-Line
  • No. of Pins: 3Pins
  • Operating Temperature Max: 200°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): 750mV
  • Continuous Collector Current Ic Max: 3A
  • Current Ic @ Vce Sat: 2A
  • Current Ic Continuous a Max: 3A
  • Current Ic hFE: 1A
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Min: 100MHz
  • Gain Bandwidth ft Typ: 100MHz
  • Hfe Min: 200
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +200°C
  • Power Dissipation Ptot Max: 1W
  • Pulsed Current Icm: 6A
  • Voltage Vcbo: 50V
