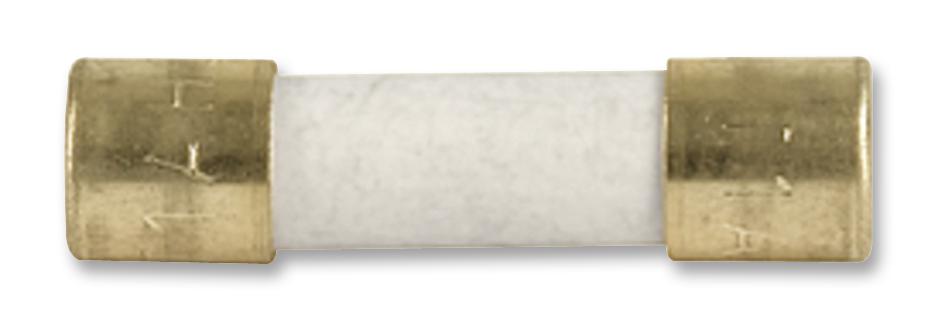

0001.2711.11 Fuse, 5A, SMD-SPT 5 X 20 T5AH250V Schurter

SCHURTERSKU:0001.2711.11 Bestelcode:4448390

Prijs:
Actie prijs€2,78

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (140 units)

Documenten en downloads

Omschrijving

SCHURTER - 0001.2711.11 - Fuse, Surface Mount, 5 A, Time Delay, 250 VAC, 150 VDC, SMD, SPT

  • Fuse Current: 5A
  • Product Range: SPT Series
  • Voltage Rating VAC: 250VAC
  • Voltage Rating V DC: 150VDC
  • Blow Characteristic: Time Delay
  • Fuse Case Style: SMD
  • Breaking Capacity Current AC: 1.5kA
  • Breaking Capacity Current DC: 1.5kA
  • SVHC: Lead (15-Jan-2019)
  • Approval Bodies: CCC
  • Body Diameter: 5.2mm
  • Body Length: 20mm
  • Breaking Capacity: 10kA @ 125V AC, 1.5kA @ 250V AC / 150V DC
  • Breaking Capacity Current UL: 10000A
  • External Width: 5mm
  • Fuse Breaking Capacity Voltage AC: 250V
  • Fuse Size Metric: 5mm x 20mm
  • Fuse Type Blowing Characteristic: Time Lag T
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Voltage Drop @ Rated Current: 90mV
