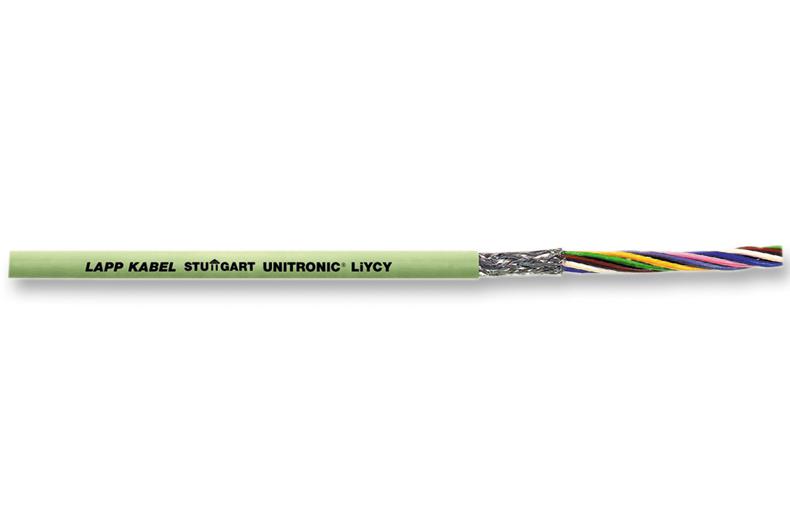

LAPP KABEL - 0034505 - Multicore Cable, Unitronic® LiYCY, Screened, 5 Core, 22 AWG, 0.34 mm², 164 ft, 50 m
- Cable Shielding: Screened
- No. of Cores: 5Core
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.34mm²
- Reel Length (Imperial): 164ft
- Reel Length (Metric): 50m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 0.643mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 6.2mm
- Voltage Rating: 350V
- Product Range: Unitronic LiYCY Series
- SVHC: No SVHC (15-Jan-2019)
- Cable Type: Braided Shield
- Conductor Make-up: 7 / 22AWG
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Outer Diameter: 6.2mm
- Secondary Insulation Material: PVC
