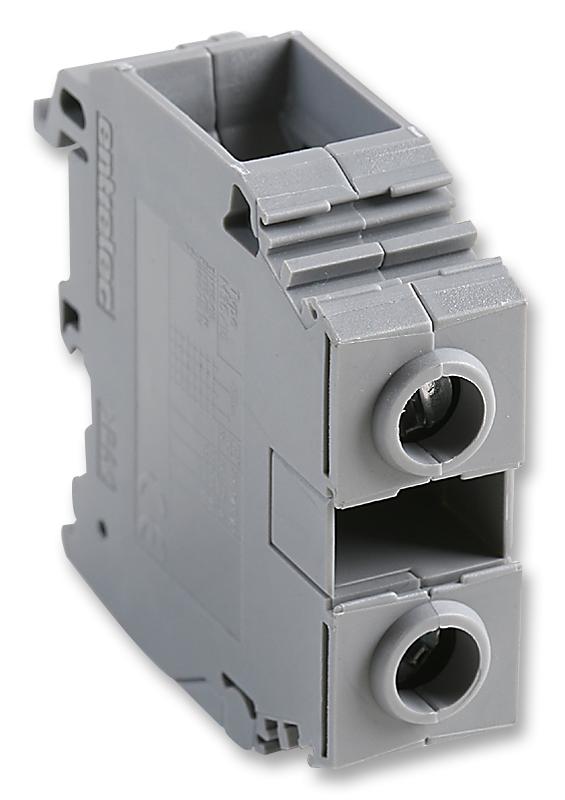

ENTRELEC - TE CONNECTIVITY - 011512407 - DIN Rail Mount Terminal Block, 2 Ways, 10 AWG, 35 mm², Screw, 125 A
- No. of Positions: 2Ways
- Wire Size AWG Min: 10AWG
- Wire Size AWG Max: -
- Conductor Area CSA: 35mm²
- Wire Connection Method: Screw
- Rated Current: 125A
- Rated Voltage: 800V
- No. of Levels: 1
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Approval Category: CEGB, CSA, DEMKO, EEXiL/II, EEXei, GOST, SEMKO, SETI, NEMKO, UL Recognised, VDE (750Vac)
- Cable Diameter Max: 35mm
- Cable Diameter Min: 1mm
- Colour: Grey
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- Contact Material: Copper
- Contact Plating: Nickel Plated Contacts
- Current Rating: 125A
- External Width: 16mm
- Material: Polyamide 6.6
- Operating Temperature Max: 130°C
- Operating Temperature Min: -55°C
- Pitch Spacing: 16mm
- Voltage Rating VAC: 800V
- Wire Area Size Max: 35mm²
- Wire Area Size Min: 1mm²
- Working Voltage: 800V
