Omschrijving

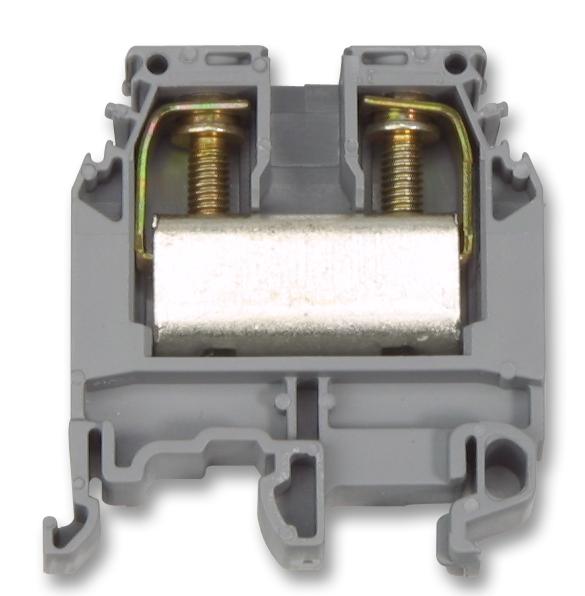

ENTRELEC - TE CONNECTIVITY - 011514920 - DIN Rail Mount Terminal Block, 2 Ways, 150 mm², Screw, 265 A
- No. of Positions: 2Ways
- Wire Size AWG Min: -
- Wire Size AWG Max: -
- Conductor Area CSA: 150mm²
- Wire Connection Method: Screw
- Rated Current: 265A
- Rated Voltage: 1kV
- No. of Levels: 1
- Product Range: -
- Cable Diameter Max: 150mm
- Cable Diameter Min: 6mm
- Colour: N/A
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- External Width: 42mm
- Pitch Spacing: 42mm
- Voltage Rating VAC: 1000V
- Wire Area Size Max: 150mm²
- Wire Area Size Min: 95mm²
- Working Voltage: 1000V
