012511813 Terminal Block, DIN Rail, 2Pos, 8AWG Entrelec - Te Connectivity

ENTRELEC - TE CONNECTIVITYSKU:012511813 Bestelcode:4277831

Prijs:
Actie prijs€4,71

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (46 units)

Documenten en downloads

Omschrijving

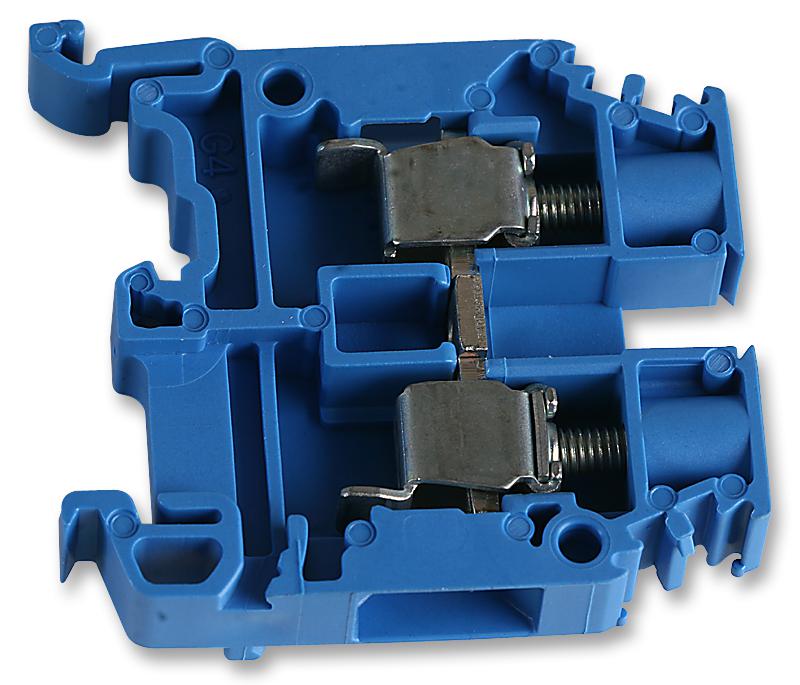

ENTRELEC - TE CONNECTIVITY - 012511813 - DIN Rail Mount Terminal Block, 2 Ways, 24 AWG, 8 AWG, 6 mm², Screw, 41 A

  • No. of Positions: 2Ways
  • Wire Size AWG Min: 24AWG
  • Wire Size AWG Max: 8AWG
  • Conductor Area CSA: 6mm²
  • Wire Connection Method: Screw
  • Rated Current: 41A
  • Rated Voltage: 800V
  • No. of Levels: 1
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Diameter Max: 6mm
  • Cable Diameter Min: 0.5mm
  • Colour: Blue
  • Current Rating: 41A
  • External Width: 8mm
  • Pitch Spacing: 8mm
  • Voltage Rating VAC: 800V
  • Wire Area Size Max: 6mm²
  • Wire Area Size Min: 0.5mm²
  • Working Voltage: 800V
