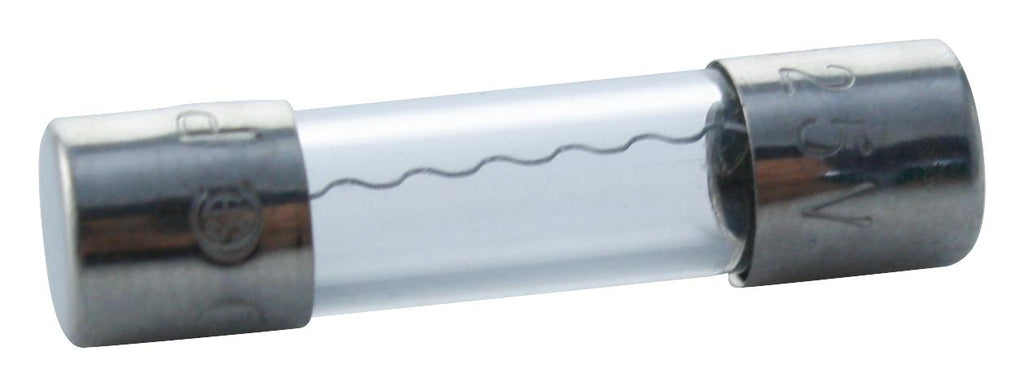

LITTELFUSE - 0233002.MXP - Fuse, Cartridge, Medium Acting, 2 A, 125 V, 5mm x 20mm, 0.2" x 0.79", 233
- Blow Characteristic: Medium Acting
- Fuse Current: 2A
- Voltage Rating VAC: 125V
- Fuse Size Metric: 5mm x 20mm
- Fuse Size Imperial: 0.2" x 0.79"
- Product Range: 233 Series
- Breaking Capacity Current AC: 10kA
- Approval Bodies: CE, CSA, K-Mark, PSE
- Approval Category: UL Recognised
- Body Diameter: 5mm
- Body Length: 20mm
- Breaking Capacity: 10kA @ 125V AC
- Cartridge Fuse Material: Glass
- Case Material: Glass
- External Diameter: 5.2mm
- Fuse Breaking Capacity Voltage AC: 125VAC
- Fuse Size Held: 5mm x 20mm
- Fuse Type Blowing Characteristic: Medium Acting
