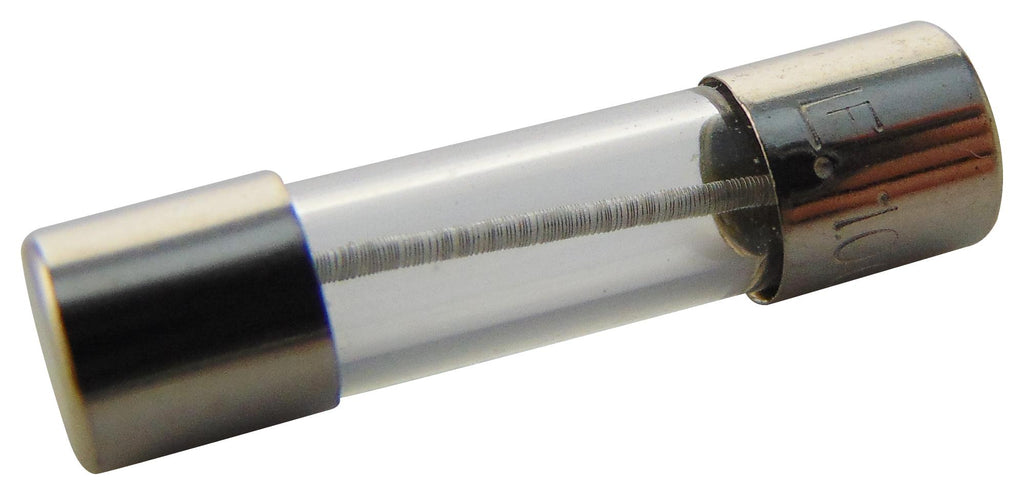

LITTELFUSE - 0239.300MXP - Fuse, Cartridge, Slow Blow, 300 mA, 250 V, 5mm x 20mm, 239
- Blow Characteristic: Slow Blow
- Fuse Current: 300mA
- Voltage Rating VAC: 250V
- Fuse Size Metric: 5mm x 20mm
- Fuse Size Imperial: -
- Product Range: 239 Series
- Breaking Capacity Current AC: 35A
- Approval Bodies: CE, CSA, K-Mark
- Approval Category: UL Recognised
- Body Diameter: 5mm
- Body Length: 20mm
- Breaking Capacity: 35A @ 250V AC, 10kA @ 125V AC
- Cartridge Fuse Material: Glass
- Case Material: Glass
- External Diameter: 5.2mm
- Fuse Breaking Capacity Voltage AC: 125VAC
- Fuse Size Held: 5mm x 20mm
- Fuse Type Blowing Characteristic: Antisurge
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
