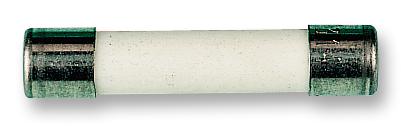

LITTELFUSE - 0314.750MXP - Fuse, Cartridge, Fast Acting, 750 mA, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", 314
- Blow Characteristic: Fast Acting
- Fuse Current: 750mA
- Voltage Rating VAC: 250V
- Fuse Size Metric: 6.3mm x 32mm
- Fuse Size Imperial: 1/4" x 1-1/4"
- Product Range: 314 Series
- Breaking Capacity Current AC: 35A
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Body Diameter: 6.35mm
- Breaking Capacity: 35A @ 250V AC, 10kA @ 125V AC / DC
- Breaking Capacity Current DC: 10kA
- Cartridge Fuse Material: Ceramic
- Case Material: Ceramic
- Fuse Breaking Capacity Voltage AC: 125VAC
- Fuse Size Code: 3AB
- Fuse Size Held: 1/4" x 1-1/4", 6.3mm x 32mm, 3AB, 3AG, 0
- Fuse Type Blowing Characteristic: Fast Acting
- Length: 31.75mm
- Voltage Rating V DC: 125V
