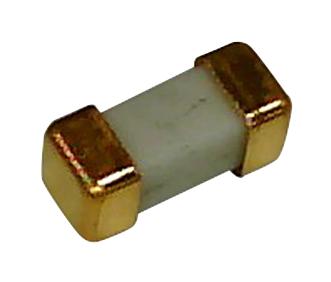

LITTELFUSE - 0448.062MR - Fuse, Surface Mount, 62 mA, Very Fast Acting, 125 VAC, 125 VDC, 2410 (6125 Metric), NANO2 448
- Fuse Current: 62mA
- Product Range: NANO2 Series
- Voltage Rating VAC: 125VAC
- Voltage Rating V DC: 32VDC
- Blow Characteristic: Very Fast Acting
- Fuse Case Style: SMD
- Breaking Capacity Current AC: 50A
- Breaking Capacity Current DC: 300A
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Breaking Capacity: 50A @ 125V AC / DC, 300A @ 32V DC
- Case Material: Ceramic
- External Depth: 2.69mm
- External Length / Height: 2.69mm
- External Width: 6.1mm
- Fuse Breaking Capacity Voltage AC: 125VAC
- Fuse Type Blowing Characteristic: Very Fast Acting
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
