0467003.Nr Fuse, 0603, V Fast Acting, 3a LITTELFUSE

LITTELFUSESKU:0467003.NR Bestelcode:1596953

Prijs:
Actie prijs€1,50

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2660 units)

Documenten en downloads

Omschrijving

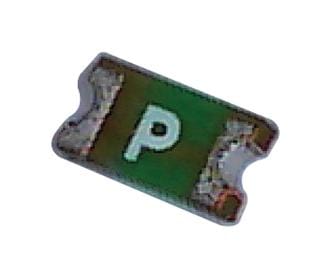

LITTELFUSE - 0467003.NR - Fuse, Surface Mount, 3 A, Very Fast Acting, 32 VAC, 32 VDC, 0603 (1608 Metric), 467

  • Fuse Current: 3A
  • Product Range: 467 Series
  • Voltage Rating VAC: 32VAC
  • Voltage Rating V DC: 32VDC
  • Blow Characteristic: Very Fast Acting
  • Fuse Case Style: 0603
  • Breaking Capacity Current AC: 35A
  • Breaking Capacity Current DC: 35A
  • Approval Bodies: CSA
  • Approval Category: UL Recognised
  • Breaking Capacity: 35A @ 32V AC / DC
  • Breaking Capacity Current UL: 35A
  • Case Material: Advanced High Temperature Substrate
  • Device Marking: P
  • External Depth: 0.813mm
  • External Length / Height: 0.305mm
  • External Width: 1.6mm
  • Fuse Breaking Capacity Voltage AC: 32VAC
  • Fuse Type Blowing Characteristic: Very Fast Acting
  • Operating Temperature Max: 90°C
  • Operating Temperature Min: -55°C
