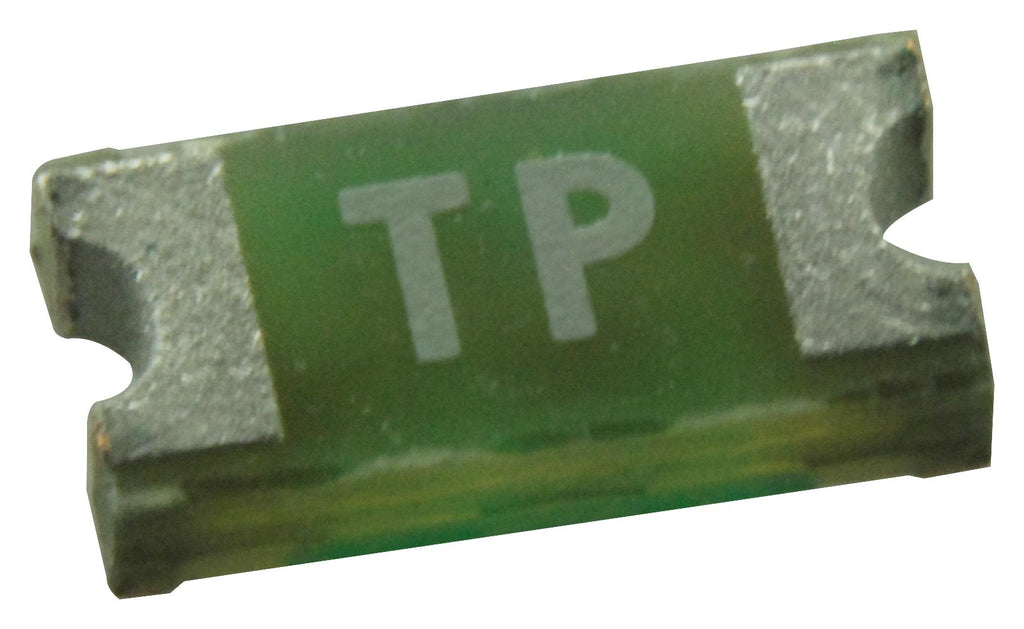

0468003.Nr Fuse, 1206, ANTISURGE, 3a LITTELFUSE

LITTELFUSESKU:0468003.NR Bestelcode:1596520

Prijs:
Actie prijs€1,51

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2740 units)

Documenten en downloads

Omschrijving

LITTELFUSE - 0468003.NR - Fuse, Surface Mount, 3 A, Slow Blow, 32 VAC, 32 VDC, 1206 (3216 Metric), 468

  • Fuse Current: 3A
  • Product Range: Slo-Blo Series
  • Voltage Rating VAC: 32VAC
  • Voltage Rating V DC: 32VDC
  • Blow Characteristic: Time Delay
  • Fuse Case Style: 1206
  • Breaking Capacity Current AC: 50A
  • Breaking Capacity Current DC: 50A
  • Approval Bodies: CSA
  • Approval Category: UL Recognised
  • Breaking Capacity: 50A @ 32V AC / DC
  • Case Material: Epoxy Substrate
  • External Depth: 1.52mm
  • External Length / Height: 0.58mm
  • External Width: 3.18mm
  • Fuse Breaking Capacity Voltage AC: 63V
  • Fuse Type Blowing Characteristic: Slo Blo
  • Operating Temperature Max: 90°C
  • Operating Temperature Min: -55°C
