09 03 264 6421 Socket, DIN41612, C, 64WAY Harting

HARTINGSKU:09 03 264 6421 Bestelcode:1189271

Prijs:
Actie prijs€13,27

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (21 units)

Documenten en downloads

Omschrijving

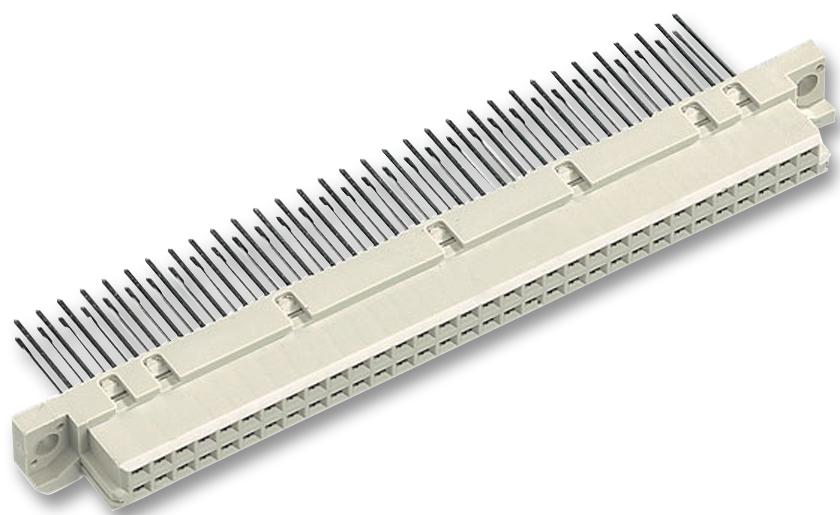

HARTING - 09 03 264 6421 - DIN 41612 Connector, Type C, 64 Contacts, Receptacle, 2.54 mm, 2 Row, a + c

  • Product Range: Type C Series
  • No. of Contacts: 64Contacts
  • Gender: Receptacle
  • Pitch Spacing: 2.54mm
  • No. of Rows: 2 Row
  • Rows Loaded: a + c
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper
  • No. of Mating Cycles: 400
  • SVHC: No SVHC (15-Jan-2018)
  • Contact Resistance: 20mohm
  • Contact Termination: Through Hole Vertical
  • Contact Termination Type: Through Hole
  • Current Rating: 2A
  • External Depth: 10.6mm
  • External Length / Height: 11.6mm
  • External Width: 95mm
  • Insulation Resistance: 1000Gohm
  • Lead Spacing: 2.54mm
  • Material: Thermoplastic resin, glass fibre filled, UL 94-V0
  • No. of Rows: 2Rows
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Pin Length: 13mm
  • Row Pitch: 5.08mm
  • Termination Method: Solder
