09 0416 90 05 SOCKET, SEALED PANEL, 5WAY BINDER

BINDERSKU:09 0416 90 05 Bestelcode:1122579

Prijs:
Actie prijs€23,85

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (23 units)

Documenten en downloads

Omschrijving

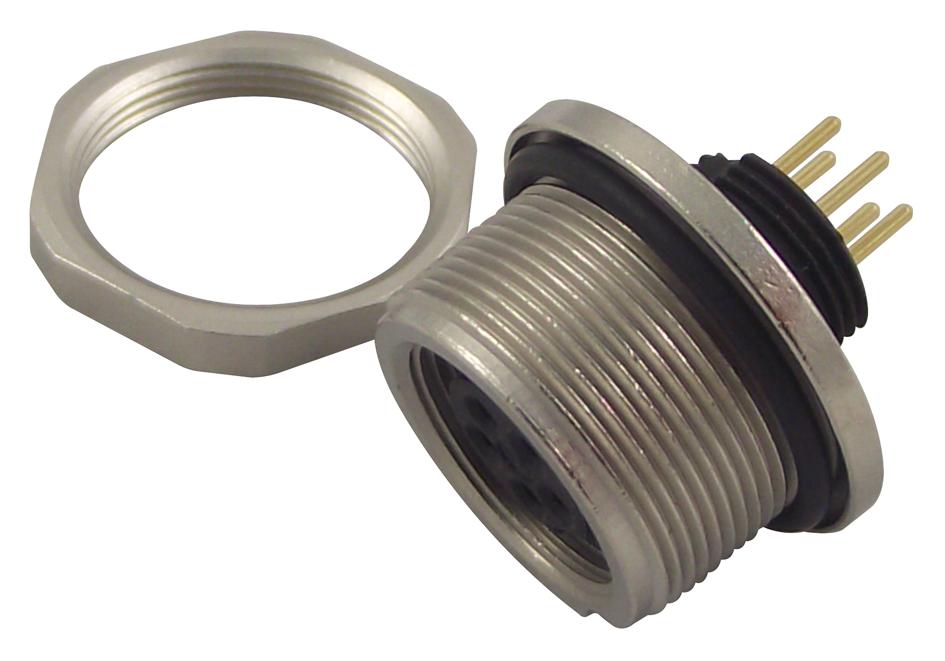

BINDER - 09 0416 90 05 - Circular Connector, 712 Series, Panel Mount Receptacle, 5 Contacts, Solder Socket

  • Product Range: 712 Series
  • Circular Connector Shell Style: Panel Mount Receptacle
  • No. of Contacts: 5Contacts
  • Circular Contact Type: Solder Socket
  • Coupling Style: -
  • Connector Body Material: Nylon (Polyamide) Body
  • Connector Body Plating: -
  • Contact Material: Bronze
  • Contact Plating: Gold
  • SVHC: Lead (27-Jun-2018)
  • Cable Diameter Max: 5mm
  • Connector Mounting: Panel Mount
  • Connector Type: Circular Industrial
  • Contact Gender: Socket
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 2mohm
  • Contact Termination: Solder
  • Contact Termination Type: Solder
  • Contact to Contact Capacitance: 1.5pF
  • Current Rating: 3A
  • Gender: Receptacle
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 10Gohm
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Voltage Rating VAC: 125V
  • Wire Area Size Max: 0.25mm²
  • Withstand Voltage: 1500V
