09 14 004 3141 Module, 4WAY, Female, CC Protected Harting

HARTINGSKU:09 14 004 3141 Bestelcode:1243953

Prijs:
Actie prijs€14,66

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (106 units)

Documenten en downloads

Omschrijving

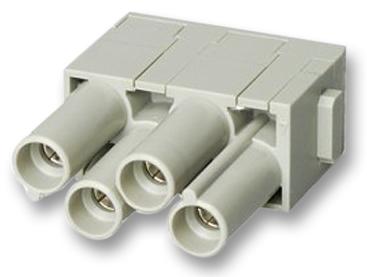

HARTING - 09 14 004 3141 - Heavy Duty Connector, Han® CC Protected Socket Module, Less Contacts, Han-Modular, Module

  • Product Range: Han-Modular Series
  • Heavy Duty Connector Type: Module
  • No. of Contacts: 4 Contacts
  • Rectangular Shell Size: -
  • Gender: Receptacle
  • Heavy Duty Contact Type: Crimp Socket - Contacts Not Supplied
  • Current Rating: 40A
  • SVHC: No SVHC (15-Jan-2018)
  • Contact Resistance: 1mohm
  • Contact Termination: Crimp
  • Degree of Pollution: 3
  • Flammability Rating: UL94V-0
  • For Use With: Han CC Socket Crimp Contacts
  • Insert Type: Power
  • Insulation Resistance: 10Mohm
  • Material: Polycarbonate
  • No. of Contacts: 4Contacts
  • No. of Mating Cycles: 500
  • No. of Positions: 4Ways
  • No. of Rows: 2 Row
  • No. of Rows: 2Rows
  • Operating Temperature Max: +125°C
  • Operating Temperature Min: -40°C
  • Voltage Rating: 830V
  • Voltage Rating VAC: 830V
  • Wire Size AWG Max: 10AWG
  • Wire Size AWG Min: 16AWG
  • Working Voltage: 830V
