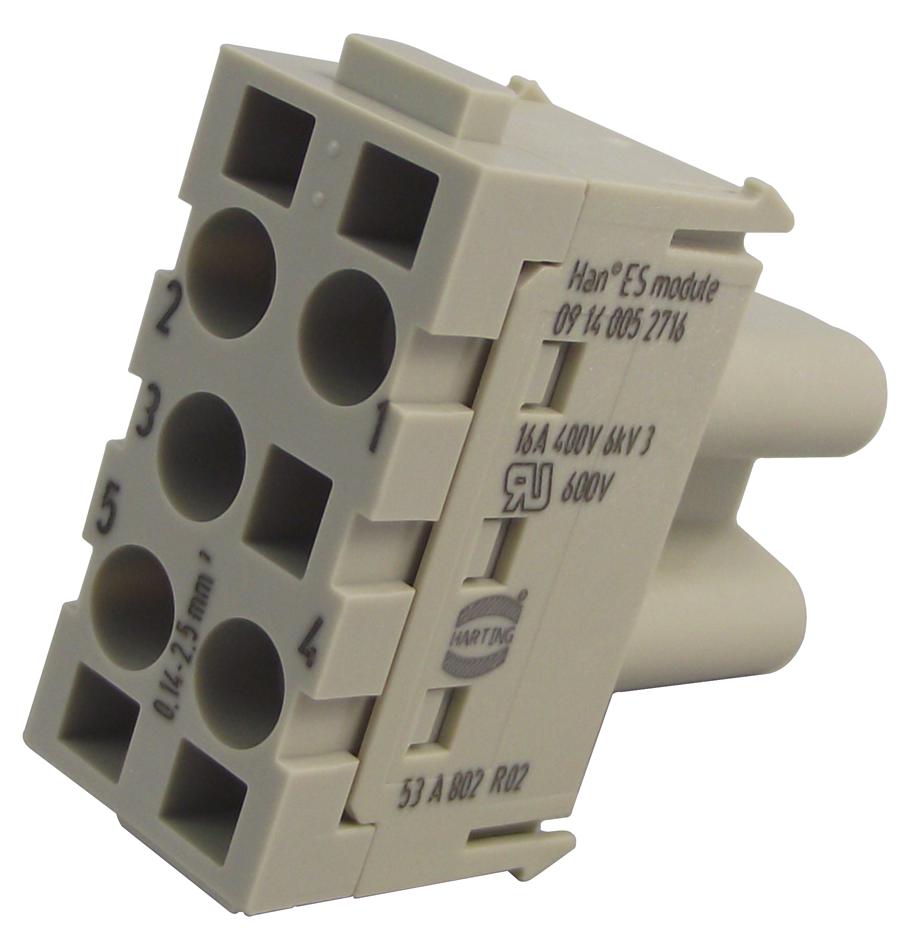

HARTING - 09 14 005 2716 - Heavy Duty Connector, Han-Modular ES, Insert, 5 Contacts, Receptacle, Cage Clamp Socket
- Product Range: Han-Modular ES Series
- Heavy Duty Connector Type: Insert
- No. of Contacts: 5 Contacts
- Rectangular Shell Size: -
- Gender: Receptacle
- Heavy Duty Contact Type: Cage Clamp Socket
- Current Rating: 16A
- SVHC: No SVHC (15-Jan-2018)
- Connector Mounting: Panel Mount
- Connector Type: Rectangular Power
- Contact Gender: Socket
- Contact Material: Copper Alloy
- Contact Plating: Silver Plated Contacts
- Contact Resistance: 1mohm
- Contact Termination: Clamp
- Contact Termination Type: Clamp
- Degree of Pollution: 3
- Flammability Rating: UL94V-0
- For Use With: Han Modular Housings & Hoods
- Insulation Resistance: 10Mohm
- Material: Polycarbonate
- No. of Contacts: 5Contacts
- No. of Mating Cycles: 500
- No. of Rows: 2 Row
- No. of Rows: 2Rows
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Voltage Rating: 400V
- Voltage Rating VAC: 400V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.14mm²
- Wire Size AWG Max: 14AWG
- Wire Size AWG Min: 26AWG
