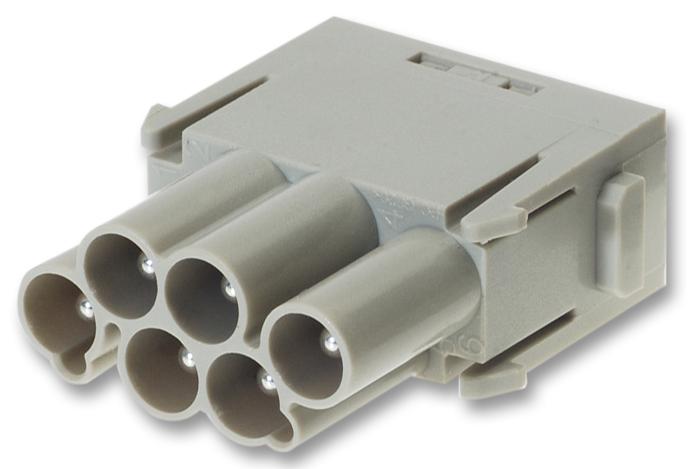

HARTING - 09 14 006 3041 - Heavy Duty Connector, Protected Pin Module, Less Contacts, Han-Modular E, Module, 6 Contacts, Plug
- Product Range: Han-Modular E Series
- Heavy Duty Connector Type: Module
- No. of Contacts: 6 Contacts
- Rectangular Shell Size: -
- Gender: Plug
- Heavy Duty Contact Type: Crimp Pin - Contacts Not Supplied
- Current Rating: 16A
- SVHC: No SVHC (15-Jan-2018)
- Connector Mounting: Cable Mount
- Connector Type: Rectangular Power
- Contact Termination: Crimp
- Degree of Pollution: 3
- Flammability Rating: UL94V-0
- For Use With: Han E Pin Crimp Contacts
- Insert Type: Power
- Insulation Resistance: 10Mohm
- Material: Polycarbonate
- No. of Contacts: 6Contacts
- No. of Mating Cycles: 500
- No. of Positions: 6Ways
- No. of Rows: 2 Row
- No. of Rows: 2Rows
- Operating Temperature Max: +125°C
- Operating Temperature Min: -40°C
- Standard: DIN VDE 0627
- Termination Method: Crimp
- Voltage Rating: 830V
- Voltage Rating VAC: 830V
- Wire Size AWG Max: 12AWG
- Wire Size AWG Min: 26AWG
- Working Voltage: 830V
