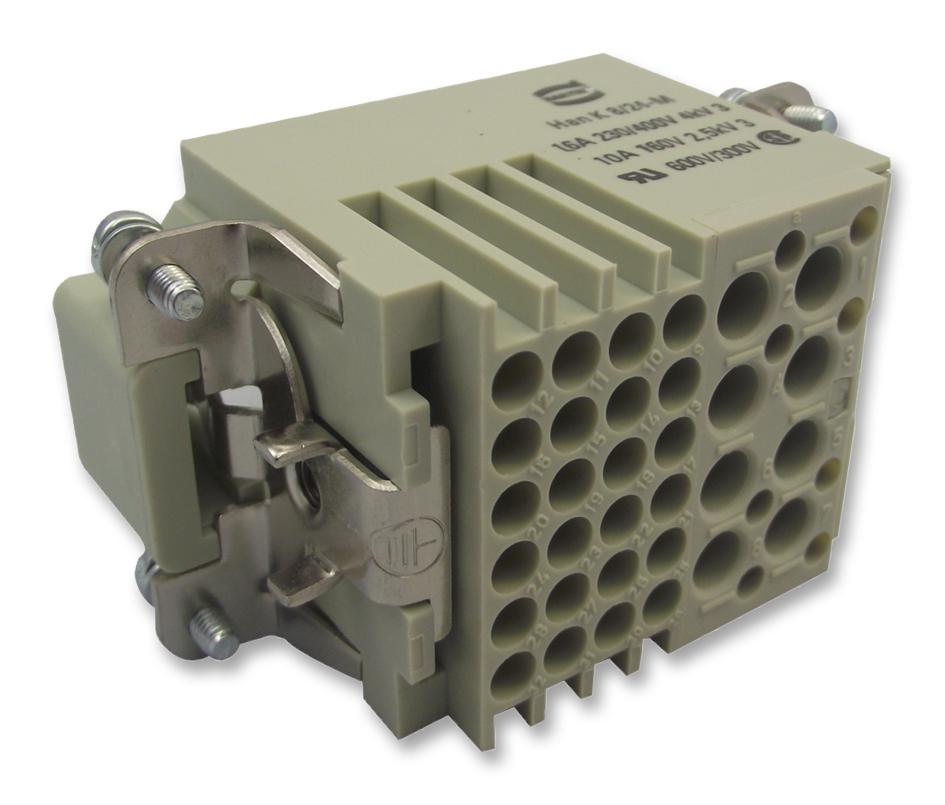

HARTING - 09 38 032 3001 - Heavy Duty Connector, Han K 8/24+PE Power-Signal, Less Contacts, Han-Com, Insert, 33 Contacts, 10B
- Product Range: Han-Com Series
- Heavy Duty Connector Type: Insert
- No. of Contacts: 33 Contacts
- Rectangular Shell Size: 10B
- Gender: Plug
- Heavy Duty Contact Type: Crimp Pin - Contacts Not Supplied
- Current Rating: 16A
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, UL, VDE
- Connector Mounting: Panel Mount
- Connector Type: Rectangular Power
- Contact Termination: Crimp
- For Use With: Han D Pin Crimp Contacts, Han E Pin Crimp Contacts
- IP / NEMA Rating: IP65
- Insert Type: Combination
- No. of Contacts: 33Contacts
- No. of Positions: 33Ways
- No. of Rows: 6 Row
- No. of Rows: 6Rows
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Range: 10B
- Termination Method: Crimp
- Voltage Rating: 400V
- Voltage Rating VAC: 400V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.5mm²
- Working Voltage: 400V
