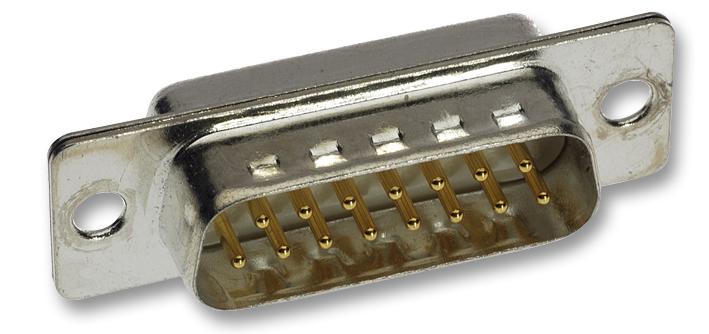

HARTING - 09642217210 - D Sub Connector, Filtered, Plug, 15 Contacts, DA, Solder Cup
- Product Range: -
- D Sub Shell Size: DA
- Gender: Plug
- No. of Contacts: 15Contacts
- Capacitance: 47pF
- Connector Body Material: Steel Body
- Contact Termination Type: Solder Cup
- Contact Material: -
- Contact Plating: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: UL
- Case Material: Steel
- Connector Mounting: Cable Mount, Panel Mount
- Contact Resistance: 10mohm
- Contact Termination: Solder
- D Sub Connector Type: Filtered
- DC Current Max: 7.5A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- No. of Mating Cycles: 200
- Nominal Capacitance: 47pF
- Operating Temperature Max: +125°C
- Operating Temperature Min: -55°C
- Withstand Voltage: 250V
- Working Voltage: 100V
