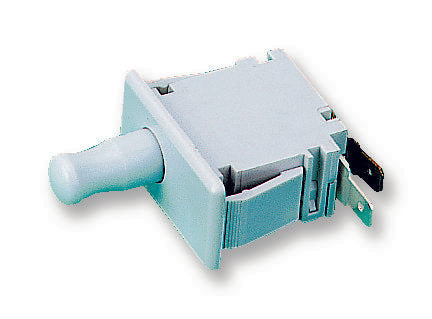

0E69-40A0 Switch, SPDT, Snap In ZF Electronics

ZF ELECTRONICS - 0E69-40A0 - Microswitch, SPDT, Quick Connect, Solder, 10 A

• Contact Configuration: SPDT
• Switch Terminals: Quick Connect, Solder
• Contact Current Max: 10A
• Contact Voltage DC Nom: -
• Product Range: Short Button Momentary Action Series
• Contact Voltage AC Nom: 250V
• Operating Force Max: 425gf
• SVHC: No SVHC (15-Jan-2019)
• Actuation Type: Round
• Actuator / Cap Colour: White
• Approval Category: UL Recognised
• Contact Current AC Max: 10A
• Current Rating: 10A
• Differential Travel Max: 1.14mm
• External Depth: 13.72mm
• External Length / Height: 24.64mm
• External Width: 25.65mm
• Flammability Rating: UL 94V-O
• Material: Thermoplastic Polyester
• No. of Electrical Operations: 50000
• No. of Mechanical Operations: 50000
• Operating Temperature Max: 85°C
• Operating Temperature Min: -40°C
• Over Travel Min: 4.45mm
• Panel Cutout Depth: 13.97mm
• Panel Cutout Width: 28.32mm
• Pin Diameter: 8.64mm
• Pre-travel: 3.18mm
• Switch Operation: Off-(On)
• Tab Blade Thickness: 0.51mm
• Tab Width: 4.75mm
• Voltage: 250VAC
